complexType "OptionExpiryBase"
Namespace:
Content:
complex, 3 elements
Defined:
Includes:
definitions of 3 elements
Used:

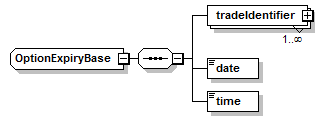

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
All Direct / Indirect Based Elements (1):
optionExpiry (in maturityNotification)
Known Usage Locations
Annotation
A structure describing an option expiring.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="OptionExpiryBase">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
<xsd:element name="date" type="xsd:date"/>
<xsd:element name="time" type="xsd:time"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
date
Type:
xsd:date, predefined, simple content
XML Source (see within schema source)
<xsd:element name="date" type="xsd:date"/>

time
Type:
xsd:time, predefined, simple content
XML Source (see within schema source)
<xsd:element name="time" type="xsd:time"/>

tradeIdentifier
Type:
PartyTradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
