complexType "TradeChangeBase"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 8 elements
Defined:	globally in fpml-business-events-5-8.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 1 location

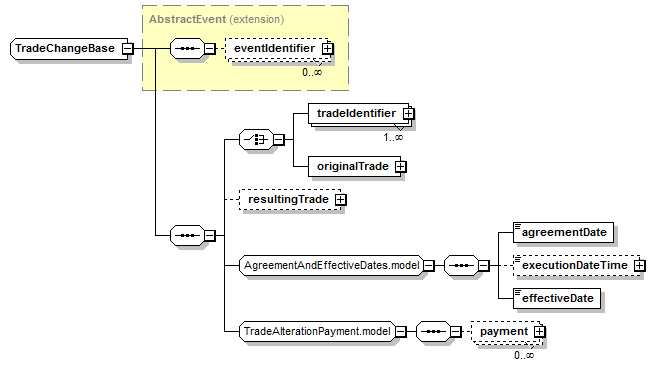

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier*, (tradeIdentifier+ | originalTrade), resultingTrade?, agreementDate, executionDateTime?, effectiveDate, payment*

</...>

Content Model Elements (8):

agreementDate,

effectiveDate (defined in AgreementAndEffectiveDates.model group),

eventIdentifier (defined in AbstractEvent complexType),

executionDateTime (defined in AgreementAndEffectiveDates.model group),

originalTrade (defined in TradeChangeBase complexType),

payment (defined in TradeAlterationPayment.model group),

resultingTrade (defined in TradeChangeBase complexType),

tradeIdentifier (defined in TradeChangeBase complexType)

Known Direct Subtypes (1):

TradeNotionalChange

All Direct / Indirect Based Elements (3):

increase,

termination (defined in PostTradeEvents.model group),

termination (in clearingConfirmed)

Known Usage Locations

In derivations of other global types (1):

TradeNotionalChange (as extension base)

Annotation

A structure describing a trade change.

Type Definition Detail

Type Derivation Tree

AbstractEvent (extension)

TradeChangeBase

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="TradeChangeBase">

<xsd:complexContent>

<xsd:extension base="AbstractEvent">

<xsd:sequence>

<xsd:choice>

<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>

<xsd:element name="originalTrade" type="Trade"/>

</xsd:choice>

<xsd:element minOccurs="0" name="resultingTrade" type="Trade"/>

<xsd:group ref="AgreementAndEffectiveDates.model"/>

<xsd:group ref="TradeAlterationPayment.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 3/8)

originalTrade

Type:

Trade, complex content

XML Source (see within schema source)

<xsd:element name="originalTrade" type="Trade"/>

resultingTrade

Type:

Trade, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="resultingTrade" type="Trade"/>

tradeIdentifier

Type:

PartyTradeIdentifier, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="PartyTradeIdentifier"/>
