element <sizeChange> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	TradeLegSizeChange
Content:	complex, 15 elements
Defined:	locally within TradeNotionalChange complexType in fpml-business-events-5-8.xsd; see XML source

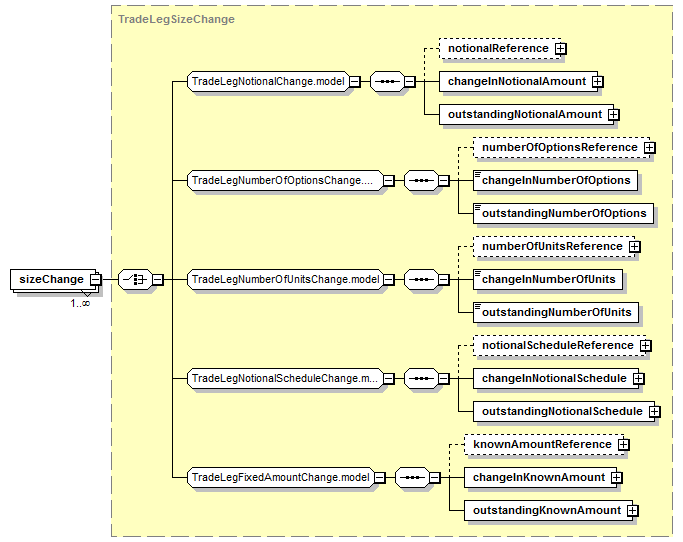

Content Model Diagram

XML Representation Summary

<sizeChange>

Content:

(notionalReference?, changeInNotionalAmount, outstandingNotionalAmount) | (numberOfOptionsReference?, changeInNumberOfOptions, outstandingNumberOfOptions) | (numberOfUnitsReference?, changeInNumberOfUnits, outstandingNumberOfUnits) | (notionalScheduleReference?, changeInNotionalSchedule, outstandingNotionalSchedule) | (knownAmountReference?, changeInKnownAmount, outstandingKnownAmount)

</sizeChange>

Content model elements (15):

changeInKnownAmount,

changeInNotionalAmount (defined in TradeLegNotionalChange.model group),

changeInNotionalSchedule,

changeInNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),

changeInNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group),

knownAmountReference,

notionalReference (defined in TradeLegNotionalChange.model group),

notionalScheduleReference (defined in TradeLegNotionalScheduleChange.model group),

numberOfOptionsReference (defined in TradeLegNumberOfOptionsChange.model group),

numberOfUnitsReference (defined in TradeLegNumberOfUnitsChange.model group),

outstandingKnownAmount,

outstandingNotionalAmount (defined in TradeLegNotionalChange.model group),

outstandingNotionalSchedule (defined in TradeLegNotionalScheduleChange.model group),

outstandingNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),

outstandingNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group)

Included in content model of elements (3):

termination (defined in PostTradeEvents.model group),

termination (in clearingConfirmed)

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" name="sizeChange" type="TradeLegSizeChange"/>
