complexType "TradeLegSizeChange" | XML Schema Documentation

complexType "TradeLegSizeChange"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 15 elements
Defined:	globally in fpml-business-events-5-8.xsd; see XML source
Used:	at 2 locations

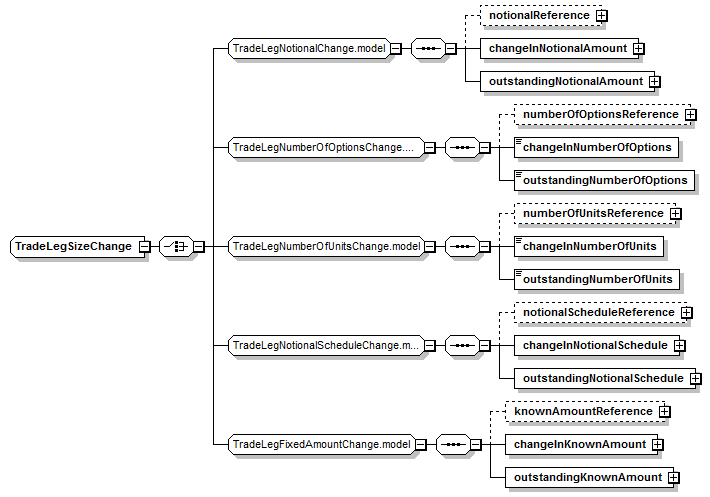

Content Model Diagram

XML Representation Summary

<...>

Content:

(notionalReference?, changeInNotionalAmount, outstandingNotionalAmount) | (numberOfOptionsReference?, changeInNumberOfOptions, outstandingNumberOfOptions) | (numberOfUnitsReference?, changeInNumberOfUnits, outstandingNumberOfUnits) | (notionalScheduleReference?, changeInNotionalSchedule, outstandingNotionalSchedule) | (knownAmountReference?, changeInKnownAmount, outstandingKnownAmount)

</...>

Content Model Elements (15):

changeInKnownAmount,

changeInNotionalAmount (defined in TradeLegNotionalChange.model group),

changeInNotionalSchedule,

changeInNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),

changeInNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group),

knownAmountReference,

notionalReference (defined in TradeLegNotionalChange.model group),

notionalScheduleReference (defined in TradeLegNotionalScheduleChange.model group),

numberOfOptionsReference (defined in TradeLegNumberOfOptionsChange.model group),

numberOfUnitsReference (defined in TradeLegNumberOfUnitsChange.model group),

outstandingKnownAmount,

outstandingNotionalAmount (defined in TradeLegNotionalChange.model group),

outstandingNotionalSchedule (defined in TradeLegNotionalScheduleChange.model group),

outstandingNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),

outstandingNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group)

All Direct / Indirect Based Elements (2):

novationAmount, sizeChange

Known Usage Locations

As direct type of elements (2):

novationAmount, sizeChange

Annotation

A structure describing a change to the size of a single leg or stream of a trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="TradeLegSizeChange">

<xsd:choice>

<xsd:group ref="TradeLegNotionalChange.model"/>

<xsd:group ref="TradeLegNumberOfOptionsChange.model"/>

<xsd:group ref="TradeLegNumberOfUnitsChange.model"/>

<xsd:group ref="TradeLegNotionalScheduleChange.model"/>

<xsd:group ref="TradeLegFixedAmountChange.model"/>

</xsd:choice>

</xsd:complexType>
