complexType "TradePackage"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 3 locations

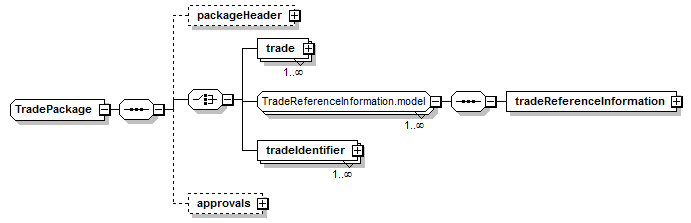

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (5):
approvals (defined in TradePackage complexType),
trade (defined in TradePackage complexType),
tradeIdentifier (defined in TradePackage complexType),
All Direct / Indirect Based Elements (3):
tradePackage (defined in TradeOrInfo.model group),
tradePackage (defined in TradingEvents.model group),
Known Usage Locations
Annotation
A bundle of trades collected together into a single unit for reporting.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="TradePackage">
<xsd:sequence>
<xsd:element minOccurs="0" name="packageHeader" type="PackageHeader"/>
<xsd:choice>
<xsd:element maxOccurs="unbounded" name="trade" type="Trade"/>
<xsd:group maxOccurs="unbounded" ref="TradeReferenceInformation.model"/>
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="TradeIdentifier"/>
</xsd:choice>
<xsd:element minOccurs="0" name="approvals" type="Approvals"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/5)
approvals
Type:
Approvals, complex content
A container for approval states in the workflow.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="approvals" type="Approvals"/>
packageHeader
Type:
PackageHeader, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="packageHeader" type="PackageHeader"/>
trade
Type:
Trade, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="trade" type="Trade"/>
tradeIdentifier
Type:
TradeIdentifier, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="tradeIdentifier" type="TradeIdentifier"/>
