group "NovationAmountsOld.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
6 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

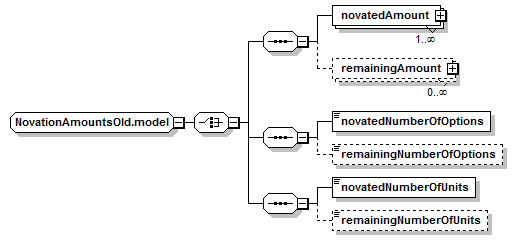

Content Model Diagram
Complex Content Model
(novatedAmount+, remainingAmount*) | (novatedNumberOfOptions, remainingNumberOfOptions?) | (novatedNumberOfUnits, remainingNumberOfUnits?)
Content Model Elements (6):
novatedAmount, novatedNumberOfOptions, novatedNumberOfUnits, remainingAmount, remainingNumberOfOptions, remainingNumberOfUnits
Known Usage Locations
XML Source (w/o annotations (7); see within schema source)
<xsd:group name="NovationAmountsOld.model">
<xsd:choice>
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="novatedAmount" type="Money"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="remainingAmount" type="Money"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="novatedNumberOfOptions" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="remainingNumberOfOptions" type="xsd:decimal"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="novatedNumberOfUnits" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="remainingNumberOfUnits" type="xsd:decimal"/>
</xsd:sequence>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 6/6)
novatedAmount
Type:
Money, complex content
The amount which represents the portion of the Old Contract being novated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="novatedAmount" type="Money"/>
novatedNumberOfOptions
Type:
xsd:decimal, predefined, simple content
The number of options which represent the portion of the Old Contract being novated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="novatedNumberOfOptions" type="xsd:decimal"/>
novatedNumberOfUnits
Type:
xsd:decimal, predefined, simple content
The number of options which represent the portion of the Old Contract being novated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="novatedNumberOfUnits" type="xsd:decimal"/>
remainingAmount
Type:
Money, complex content
The amount which represents the portion of the Old Contract not being novated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="remainingAmount" type="Money"/>
remainingNumberOfOptions
Type:
xsd:decimal, predefined, simple content
The number of options which represent the portion of the Old Contract not being novated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="remainingNumberOfOptions" type="xsd:decimal"/>
remainingNumberOfUnits
Type:
xsd:decimal, predefined, simple content
The number of options which represent the portion of the Old Contract not being novated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="remainingNumberOfUnits" type="xsd:decimal"/>
