complexType "FixedAmountCalculation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-cd-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

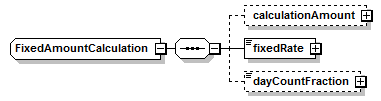

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
All Direct / Indirect Based Elements (1):
fixedAmountCalculation
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FixedAmountCalculation">
<xsd:sequence>
<xsd:element minOccurs="0" name="calculationAmount" type="CalculationAmount"/>
<xsd:element name="fixedRate" type="FixedRate"/>
<xsd:element minOccurs="0" name="dayCountFraction" type="DayCountFraction"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
calculationAmount
Type:
CalculationAmount, complex content
The notional amount used in the calculation of fixed amounts where an amount is calculated on a formula basis, i.e. fixed amount = fixed rate payer calculation amount x fixed rate x fixed rate day count fraction. ISDA 2003 Term: Fixed Rate Payer Calculation Amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculationAmount" type="CalculationAmount"/>
dayCountFraction
Type:
DayCountFraction, simple content
The day count fraction. ISDA 2003 Term: Fixed Rate Day Count Fraction.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="dayCountFraction" type="DayCountFraction"/>
fixedRate
Type:
FixedRate, simple content
The calculation period fixed rate. A per annum rate, expressed as a decimal. A fixed rate of 5% would be represented as 0.05.
Simple Content
xsd:decimal
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixedRate" type="FixedRate"/>
