complexType "PhysicalSettlementPeriod"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-cd-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

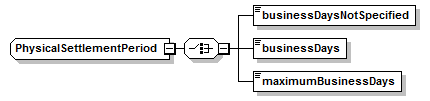

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
All Direct / Indirect Based Elements (1):
physicalSettlementPeriod
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="PhysicalSettlementPeriod">
<xsd:choice>
<xsd:element name="businessDaysNotSpecified" type="xsd:boolean"/>
<xsd:element name="businessDays" type="xsd:nonNegativeInteger"/>
<xsd:element name="maximumBusinessDays" type="xsd:nonNegativeInteger"/>
</xsd:choice>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
businessDays
Type:
xsd:nonNegativeInteger, predefined, simple content
A number of business days. Its precise meaning is dependant on the context in which this element is used. ISDA 2003 Term: Business Day
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="businessDays" type="xsd:nonNegativeInteger"/>
businessDaysNotSpecified
Type:
xsd:boolean, predefined, simple content
An explicit indication that a number of business days are not specified and therefore ISDA fallback provisions should apply.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="businessDaysNotSpecified" type="xsd:boolean"/>
maximumBusinessDays
Type:
xsd:nonNegativeInteger, predefined, simple content
A maximum number of business days. Its precise meaning is dependant on the context in which this element is used. Intended to be used to limit a particular ISDA fallback provision.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="maximumBusinessDays" type="xsd:nonNegativeInteger"/>
