complexType "CommodityDigitalExercise"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 7 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

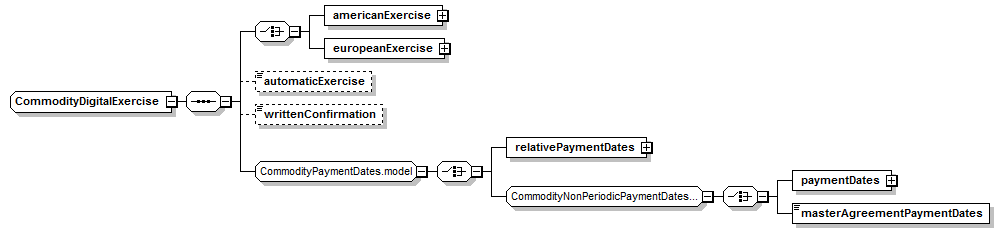

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (7):
americanExercise (in exercise in commodityDigitalOption),
automaticExercise (in exercise in commodityDigitalOption),
europeanExercise (in exercise in commodityDigitalOption),
masterAgreementPaymentDates,
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),
relativePaymentDates,
writtenConfirmation (in exercise in commodityDigitalOption)
All Direct / Indirect Based Elements (1):
exercise (in commodityDigitalOption)
Known Usage Locations
Annotation
The parameters for defining how the commodity digital option can be exercised. I differs from the CommodityExercise type in that it lacks a specification of Settlement Currency. The Settlement Currency is specified in the 'featurePayment' element.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="CommodityDigitalExercise">
<xsd:sequence>
<xsd:choice>
<xsd:element name="americanExercise" type="CommodityAmericanExercise"/>
<xsd:element name="europeanExercise" type="CommodityEuropeanExercise"/>
</xsd:choice>
<xsd:element minOccurs="0" name="automaticExercise" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="writtenConfirmation" type="xsd:boolean"/>
<xsd:group ref="CommodityPaymentDates.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/7)
americanExercise
Type:
CommodityAmericanExercise, complex content
The parameters for defining the expiration date for an American option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="americanExercise" type="CommodityAmericanExercise"/>
automaticExercise
Type:
xsd:boolean, predefined, simple content
Specifies whether or not Automatic Exercise applies to a Commodity Option Transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="automaticExercise" type="xsd:boolean"/>
europeanExercise
Type:
CommodityEuropeanExercise, complex content
The parameters for defining the expiration date and time for a European or Asian style option. For an Asian style option the expiration date is equivalent to the termination date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="europeanExercise" type="CommodityEuropeanExercise"/>
writtenConfirmation
Type:
xsd:boolean, predefined, simple content
Specifies whether or not Written Confirmation applies to a Commodity Option Transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="writtenConfirmation" type="xsd:boolean"/>
