complexType "CommodityNotionalQuantity"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 12 locations

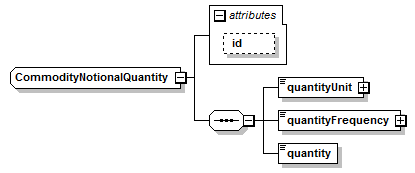

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (3):
quantity (defined in CommodityNotionalQuantity complexType),
quantityFrequency (defined in CommodityNotionalQuantity complexType),
quantityUnit (defined in CommodityNotionalQuantity complexType)
Known Direct Subtypes (2):
CommoditySettlementPeriodsNotionalQuantity, ElectricityPhysicalDeliveryQuantity
All Direct / Indirect Based Elements (12):
integralMultipleQuantity,
maxPhysicalQuantity,
minPhysicalQuantity,
minimumNotionalQuantity,
notionalQuantity (defined in CommodityNotionalQuantity.model group),
notionalQuantity (in commodityDigitalOption),
notionalStep,
physicalQuantity (defined in CommodityFixedPhysicalQuantity.model group),
physicalQuantity (in deliveryQuantity in electricityPhysicalLeg),
quantityStep,
settlementPeriodsNotionalQuantity,
settlementPeriodsNotionalQuantityStep
Known Usage Locations
Annotation
Commodity Notional.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="CommodityNotionalQuantity">
<xsd:sequence>
<xsd:element name="quantityUnit" type="QuantityUnit"/>
<xsd:element name="quantityFrequency" type="CommodityQuantityFrequency"/>
<xsd:element name="quantity" type="xsd:decimal"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 3/3)
quantity
Type:
xsd:decimal, predefined, simple content
Amount of commodity per quantity frequency.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="quantity" type="xsd:decimal"/>
quantityFrequency
Type:
CommodityQuantityFrequency, simple content
The frequency at which the Notional Quantity is deemed to apply for purposes of calculating the Total Notional Quantity.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="quantityFrequency" type="CommodityQuantityFrequency"/>
quantityUnit
Type:
QuantityUnit, simple content
Quantity Unit is the unit of measure applicable for the quantity on the Transaction.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="quantityUnit" type="QuantityUnit"/>
