complexType "ElectricityPhysicalDeliveryQuantity"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

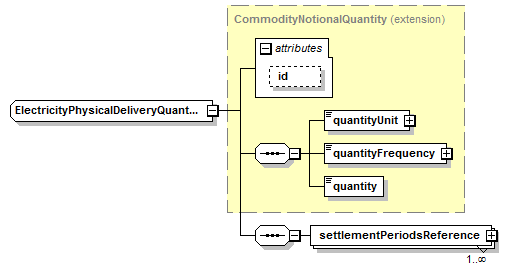

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
quantity (defined in CommodityNotionalQuantity complexType),
quantityFrequency (defined in CommodityNotionalQuantity complexType),
quantityUnit (defined in CommodityNotionalQuantity complexType),
settlementPeriodsReference (in physicalQuantity in deliveryQuantity in electricityPhysicalLeg)
All Direct / Indirect Based Elements (1):
physicalQuantity (in deliveryQuantity in electricityPhysicalLeg)
Known Usage Locations
Annotation
A type defining the physical quantity of the electricity to be delivered.
Type Definition Detail
Type Derivation Tree
CommodityNotionalQuantity (extension)
  ElectricityPhysicalDeliveryQuantity
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="ElectricityPhysicalDeliveryQuantity">
<xsd:complexContent>
<xsd:extension base="CommodityNotionalQuantity">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="settlementPeriodsReference" type="SettlementPeriodsReference"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
settlementPeriodsReference
Type:
SettlementPeriodsReference, empty content
A pointer style reference to the range(s) of Settlement Periods to which this quantity applies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="settlementPeriodsReference" type="SettlementPeriodsReference"/>
