complexType "CommodityPhysicalQuantitySchedule"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 3 elements
Defined:	globally in fpml-com-5-8.xsd; see XML source
Includes:	definitions of 1 attribute, 1 element
Used:	at 2 locations

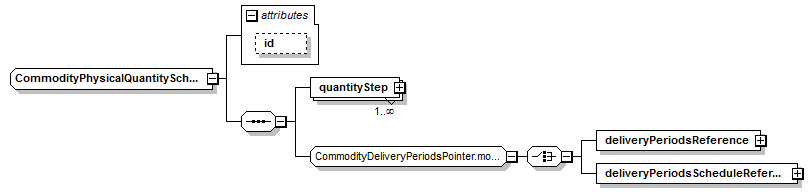

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

quantityStep+, (deliveryPeriodsReference | deliveryPeriodsScheduleReference)

</...>

Content Model Elements (3):

deliveryPeriodsReference, deliveryPeriodsScheduleReference, quantityStep

Known Direct Subtypes (1):

ElectricityPhysicalDeliveryQuantitySchedule

All Direct / Indirect Based Elements (2):

physicalQuantitySchedule (defined in CommodityFixedPhysicalQuantity.model group),

physicalQuantitySchedule (in deliveryQuantity in electricityPhysicalLeg)

Known Usage Locations

In derivations of other global types (1):

ElectricityPhysicalDeliveryQuantitySchedule (as extension base)
As direct type of elements (1):

physicalQuantitySchedule (defined in CommodityFixedPhysicalQuantity.model group)

Annotation

The Quantity per Delivery Period. There must be a Quantity step specified for each Delivery Period, regardless of whether the Quantity changes or remains the same between periods.

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="CommodityPhysicalQuantitySchedule">

<xsd:sequence>

<xsd:element maxOccurs="unbounded" name="quantityStep" type="CommodityNotionalQuantity"/>

<xsd:group ref="CommodityDeliveryPeriodsPointer.model"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 1/3)

quantityStep

Type:

CommodityNotionalQuantity, complex content

The quantity per Calculation Period. There must be a quantity specified for each Calculation Period, regardless of whether the quantity changes or remains the same between periods.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="quantityStep" type="CommodityNotionalQuantity"/>
