element <notionalAmount> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CommodityNotionalAmount
Content:	complex, 1 attribute, 3 elements
Defined:	locally within CommodityReturnLeg complexType in fpml-com-5-8.xsd; see XML source

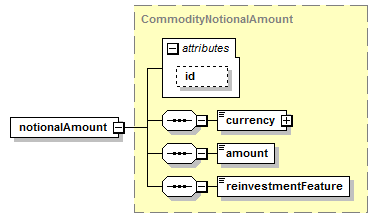

Content Model Diagram

XML Representation Summary

<notionalAmount

xsd:ID

Content:

currency, amount, reinvestmentFeature

</notionalAmount>

Content model elements (3):

amount (defined in NonNegativeMoney complexType),

currency (defined in MoneyBase complexType),

reinvestmentFeature

Included in content model of elements (1):

commodityReturnLeg

Annotation

Specifies the notional amount of a commodity performance type swap. It is a currency-denominated value (i.e. price-times-quantity). In confirmations is also referred to as the Notional Quantity (sic, expressed in currency units), Notional Amount, Equity Notional Amount and, in the case of reinvesting swaps, Initial Notional Amount.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="notionalAmount" type="CommodityNotionalAmount"/>
