element <commodityReturnLeg> (global)
Namespace:
Type:
Content:
complex, 1 attribute, 18 elements
Subst.Gr:
may substitute for element commodityPerformanceSwapLeg
Defined:
globally in fpml-com-5-8.xsd; see XML source
Used:
never

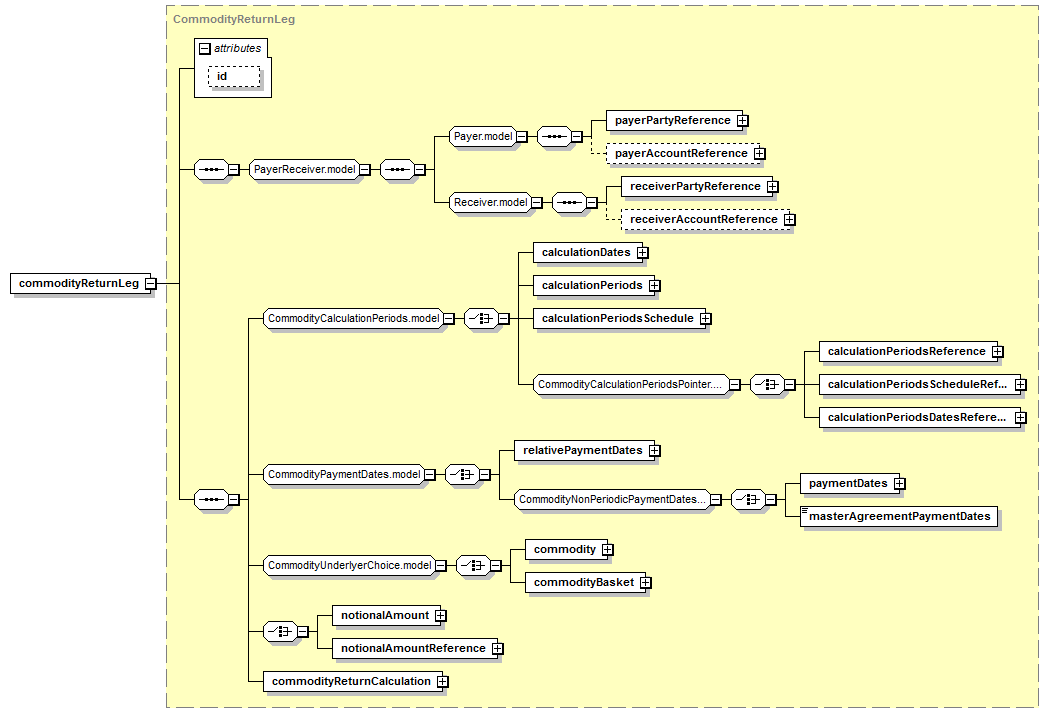

Content Model Diagram
XML Representation Summary
<commodityReturnLeg

 =
xsd:ID

>

Content:
</commodityReturnLeg>
Content model elements (18):
calculationDates (defined in CommodityCalculationPeriods.model group),
calculationPeriods (defined in CommodityCalculationPeriods.model group),
calculationPeriodsDatesReference,
calculationPeriodsReference,
calculationPeriodsSchedule (defined in CommodityCalculationPeriods.model group),
calculationPeriodsScheduleReference,
commodity (defined in CommodityUnderlyerChoice.model group),
commodityBasket,
commodityReturnCalculation,
masterAgreementPaymentDates,
notionalAmount (in commodityReturnLeg),
notionalAmountReference (in commodityReturnLeg),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
relativePaymentDates
May be included in elements by substitutions (1):
commodityPerformanceSwap
Annotation
Specifies the return payments of a commodity return swap. There can be one or two return legs. In simple return swaps there is a return leg and an interest (a.k.a. 'fee') leg. In the case of a outperformance swap there are two return legs: the return performance of two commodity underlyers are swapped. In the case of a fully-funded return swap there is no financing component and, therefore, only a single return leg is specified.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityReturnLeg" substitutionGroup="commodityPerformanceSwapLeg" type="CommodityReturnLeg"/>
