complexType "ElectricityDelivery"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 6 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

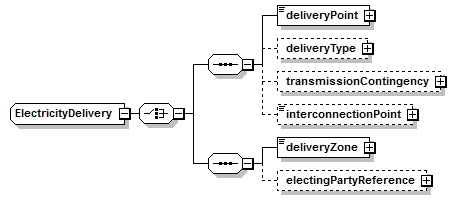

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (6):
deliveryPoint (in deliveryConditions in electricityPhysicalLeg),
deliveryType (in deliveryConditions in electricityPhysicalLeg),
deliveryZone,
electingPartyReference,
interconnectionPoint (in deliveryConditions in electricityPhysicalLeg),
transmissionContingency
All Direct / Indirect Based Elements (1):
deliveryConditions (in electricityPhysicalLeg)
Known Usage Locations
Annotation
The physical delivery conditions for electricity.
XML Source (w/o annotations (8); see within schema source)
<xsd:complexType name="ElectricityDelivery">
<xsd:choice>
<xsd:sequence>
<xsd:element name="deliveryPoint" type="ElectricityDeliveryPoint"/>
<xsd:element minOccurs="0" name="deliveryType" type="ElectricityDeliveryType"/>
<xsd:element minOccurs="0" name="transmissionContingency" type="ElectricityTransmissionContingency"/>
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="deliveryZone" type="CommodityDeliveryPoint"/>
<xsd:element minOccurs="0" name="electingPartyReference" type="PartyReference"/>
</xsd:sequence>
</xsd:choice>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/6)
deliveryPoint
Type:
ElectricityDeliveryPoint, simple content
The point at which delivery of the electricity will occur.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryPoint" type="ElectricityDeliveryPoint"/>
deliveryType
Type:
ElectricityDeliveryType, complex content
Indicates the under what conditions the Parties' delivery obligations apply.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="deliveryType" type="ElectricityDeliveryType"/>
deliveryZone
Type:
CommodityDeliveryPoint, simple content
The zone covering potential delivery points for the electricity.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deliveryZone" type="CommodityDeliveryPoint"/>
electingPartyReference
Type:
PartyReference, empty content
Indicates the party able to decide which delivery point within the deliveryPoint is used for delivery. For EEI transactions, this should reference the seller of the electricity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="electingPartyReference" type="PartyReference"/>
interconnectionPoint
Type:
InterconnectionPoint, simple content
Identification of the border(s) or border point(s) of a transportation contract.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
transmissionContingency
Type:
ElectricityTransmissionContingency, complex content
Indicates that the performance of the buyer or seller shall be excused (under the conditions specified) if transmission of the elctricity is unavailable or interrupted.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="transmissionContingency" type="ElectricityTransmissionContingency"/>
