complexType "PhysicalForwardLeg"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 4 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-com-5-8.xsd; see XML source
Used:	at 2 locations

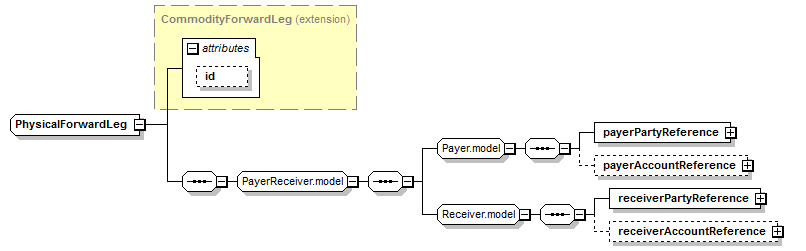

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?

</...>

Content Model Elements (4):

payerAccountReference,

payerPartyReference (defined in Payer.model group),

receiverAccountReference,

receiverPartyReference (defined in Receiver.model group)

Known Direct Subtypes (2):

BullionPhysicalLeg, MetalPhysicalLeg

All Direct / Indirect Based Elements (2):

bullionPhysicalLeg, metalPhysicalLeg

Known Usage Locations

In derivations of other global types (2):

BullionPhysicalLeg (as extension base),

MetalPhysicalLeg (as extension base)

Annotation

The common components of a physically settled leg of a Commodity Forward. This is an abstract type and should be extended by commodity-specific types.

Type Definition Detail

Type Derivation Tree

Leg (extension)

CommodityForwardLeg (extension)

PhysicalForwardLeg

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="PhysicalForwardLeg">

<xsd:complexContent>

<xsd:extension base="CommodityForwardLeg">

<xsd:sequence>

<xsd:group ref="PayerReceiver.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
