element <commodityPerformanceSwapLeg> (global abstract)
Namespace:
Type:
Content:
complex, 1 attribute, 4 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 3 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Used:

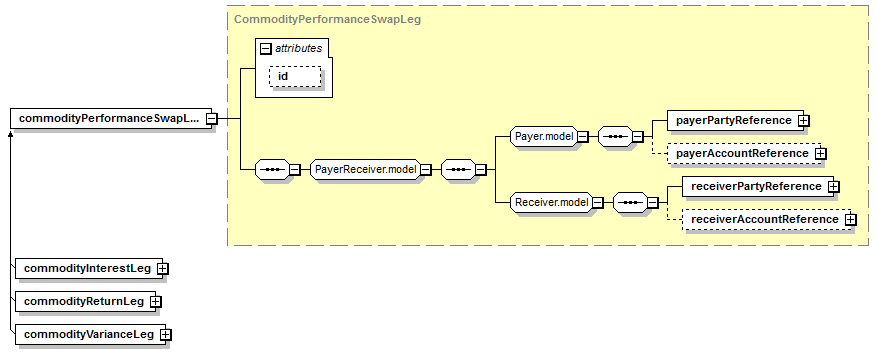

Content Model Diagram
XML Representation Summary
<commodityPerformanceSwapLeg

 =
xsd:ID

>

Content:
</commodityPerformanceSwapLeg>
Content model elements (4):
payerPartyReference (defined in Payer.model group),
Included in content model of elements (1):
commodityPerformanceSwap
May be substituted with elements (3):
commodityInterestLeg, commodityReturnLeg, commodityVarianceLeg
Known Usage Locations
Annotation
A placeholder within 'commodityPerformanceSwap' structure for the actual commodity swap legs (e.g. 'commodityReturnLeg' and 'commodityInterestLeg').
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="commodityPerformanceSwapLeg" type="CommodityPerformanceSwapLeg"/>
