complexType "RequestClearing"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 15 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

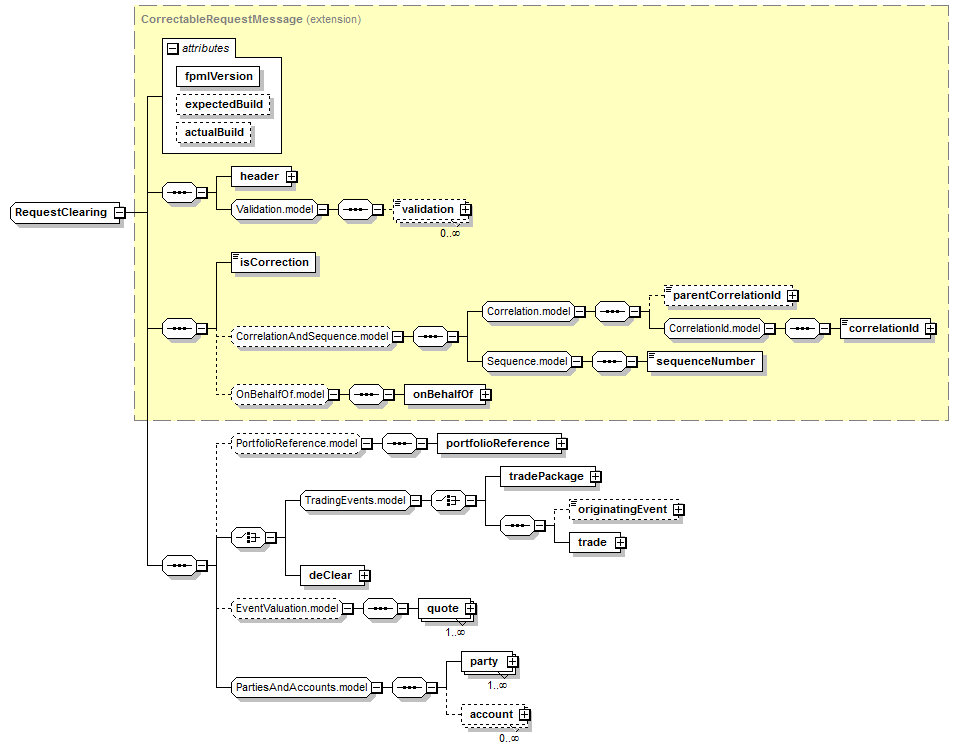

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (15):
account,
correlationId,
deClear (in requestClearing),
header (defined in RequestMessage complexType),
isCorrection,
onBehalfOf (defined in OnBehalfOf.model group),
originatingEvent (defined in TradingEvents.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
portfolioReference (defined in PortfolioReference.model group),
quote (defined in EventValuation.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEvents.model group),
tradePackage (defined in TradingEvents.model group),
validation
All Direct / Indirect Based Elements (1):
requestClearing
Known Usage Locations
Annotation
A message requesting that a trade be cleared by a clearing service.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              RequestClearing
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="RequestClearing">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:group minOccurs="0" ref="PortfolioReference.model"/>
<!--<xsd:group ref="Events.model"/> BPWG2014 Replaced by the below - comment to be deleted before 5.8LCWD -->
<xsd:choice>
<xsd:group ref="TradingEvents.model"/>
<xsd:element name="deClear" type="DeClear"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="EventValuation.model"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/15)
deClear
Type:
DeClear, complex content
A structure describing a declear event. The deClear event allows a firm to request that a trade be removed from clearing, or a clearing service to request consent for this, or to report that it has been done.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="deClear" type="DeClear"/>
