complexType "RequestMessage"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 2 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-msg-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 2 locations

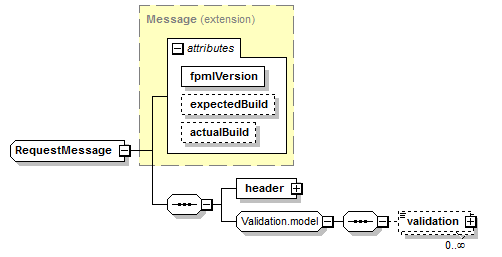

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

Content:

header, validation*

</...>

Content Model Elements (2):

header (defined in RequestMessage complexType),

validation

Known Direct Subtypes (2):

CorrectableRequestMessage, NonCorrectableRequestMessage

Known Indirect Subtypes (51):

AbstractContractNotification, AbstractFacilityNotification, AbstractServicingNotification, AccrualOptionChangeNotification, AccruingFeeChangeNotification, AccruingFeePaymentNotification, AccruingPikPaymentNotification, ConfirmationRetracted, CreditEventNotification, CreditEventNotificationRetracted, DealStatement, EventPaymentNotification, EventReleaseNotification, EventRetraction, ExecutionAdvice, ExecutionAdviceRetracted, ExecutionNotification, ExecutionRetracted, FacilityNotification, FacilityOutstandingsPositionStatement, FacilityPositionStatement, FacilityRateChangeNotification, FacilityStatement, LcNotification, LoanContractNotification, MaturityNotification, MessageRetraction, NonRecurringFeePaymentNotification, OutstandingContractsStatement, PrepaymentNotification, RepaymentWithCANotification, RequestAllocation, RequestAllocationRetracted, RequestClearing, RequestClearingEligibility, RequestClearingRetracted, RequestCollateralAllocation, RequestConfirmation, RequestConsent, RequestConsentRetracted, RequestEventStatus, RequestExecution, RequestExecutionRetracted, RequestRetransmission, RequestTradeReferenceInformationUpdate, RequestTradeReferenceInformationUpdateRetracted, RolloverNotification, SyndicatedLoanStatement, TradeChangeAdvice, TradeChangeAdviceRetracted, VerificationStatusNotification

All Direct / Indirect Based Elements (48):

accrualOptionChangeNotification, accruingFeeChangeNotification, accruingFeePaymentNotification, accruingPikPaymentNotification, creditEventNotification, creditEventNotificationRetracted, dealStatement, eventPaymentNotification, eventReleaseNotification, eventRetraction, executionAdvice, executionAdviceRetracted, executionNotification, executionRetracted, facilityNotification, facilityOutstandingsPositionStatement, facilityPositionStatement, facilityRateChangeNotification, facilityStatement, lcNotification, loanContractNotification, maturityNotification, messageRetraction, nonRecurringFeePaymentNotification, optionExpirationNotification, outstandingContractsStatement, prepaymentNotification, repaymentWithCANotification, requestAllocation, requestAllocationRetracted, requestClearing, requestClearingEligibility, requestClearingRetracted, requestCollateralAllocation, requestConfirmation, requestConfirmationRetracted, requestConsent, requestConsentRetracted, requestEventStatus, requestExecution, requestExecutionRetracted, requestRetransmission, requestTradeReferenceInformationUpdate, requestTradeReferenceInformationUpdateRetracted, rolloverNotification, tradeChangeAdvice, tradeChangeAdviceRetracted, verificationStatusNotification

Known Usage Locations

In derivations of other global types (2):

CorrectableRequestMessage (as extension base),

NonCorrectableRequestMessage (as extension base)

Annotation

A type defining the basic content of a message that requests the receiver to perform some business operation determined by the message type and its content.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="RequestMessage">

<xsd:complexContent>

<xsd:extension base="Message">

<xsd:sequence>

<xsd:element name="header" type="RequestMessageHeader"/>

<xsd:group ref="Validation.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/2)

header

Type:

RequestMessageHeader, complex content

XML Source (see within schema source)

<xsd:element name="header" type="RequestMessageHeader"/>
