complexType "RequestCollateralAllocation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 13 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

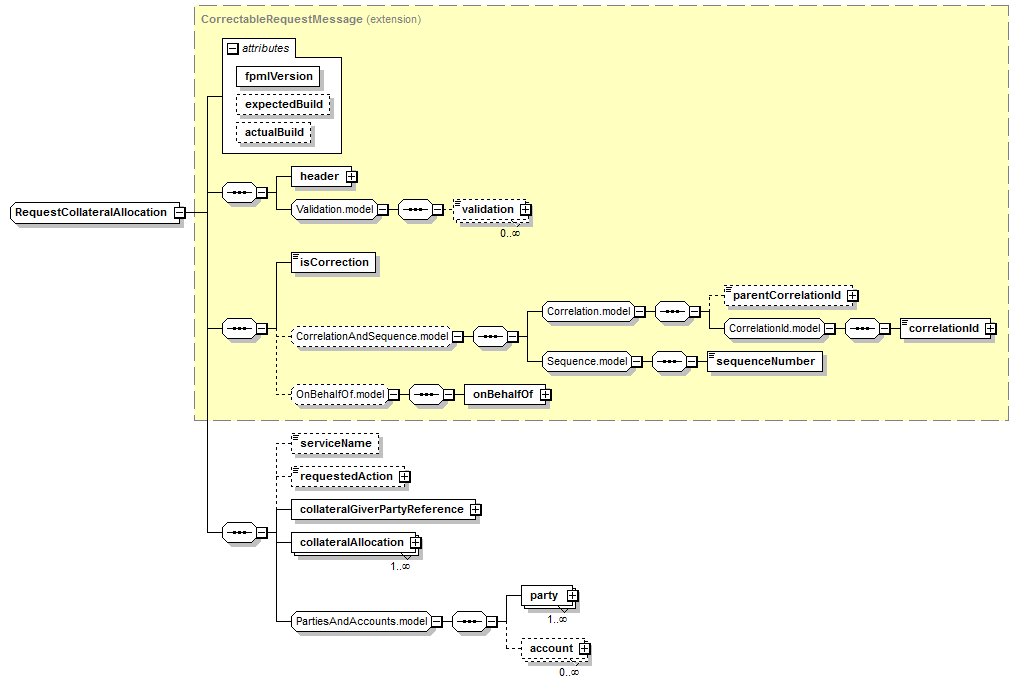

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (13):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
requestCollateralAllocation
Known Usage Locations
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              RequestCollateralAllocation
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="RequestCollateralAllocation">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="serviceName" type="NormalizedString"/>
<xsd:element minOccurs="0" name="requestedAction" type="RequestedCollateralAllocationAction"/>
<xsd:element maxOccurs="1" minOccurs="1" name="collateralGiverPartyReference" type="PartyReference"/>
<xsd:element maxOccurs="unbounded" minOccurs="1" name="collateralAllocation" type="ProposedCollateralAllocation"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/13)
collateralAllocation
Type:
ProposedCollateralAllocation, complex content
Allocation details
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="1" name="collateralAllocation" type="ProposedCollateralAllocation"/>
collateralGiverPartyReference
Type:
PartyReference, empty content
The party paying the margin / issuing the allocation request.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="1" minOccurs="1" name="collateralGiverPartyReference" type="PartyReference"/>
requestedAction
Type:
RequestedCollateralAllocationAction, simple content
The type of change requested for the collateral allocation.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="requestedAction" type="RequestedCollateralAllocationAction"/>
serviceName
Type:
NormalizedString, simple content
The name of the service to which the message applies
Simple Content
xsd:normalizedString
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="serviceName" type="NormalizedString"/>
