complexType "RequestExecution"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 13 elements
Defined:	globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

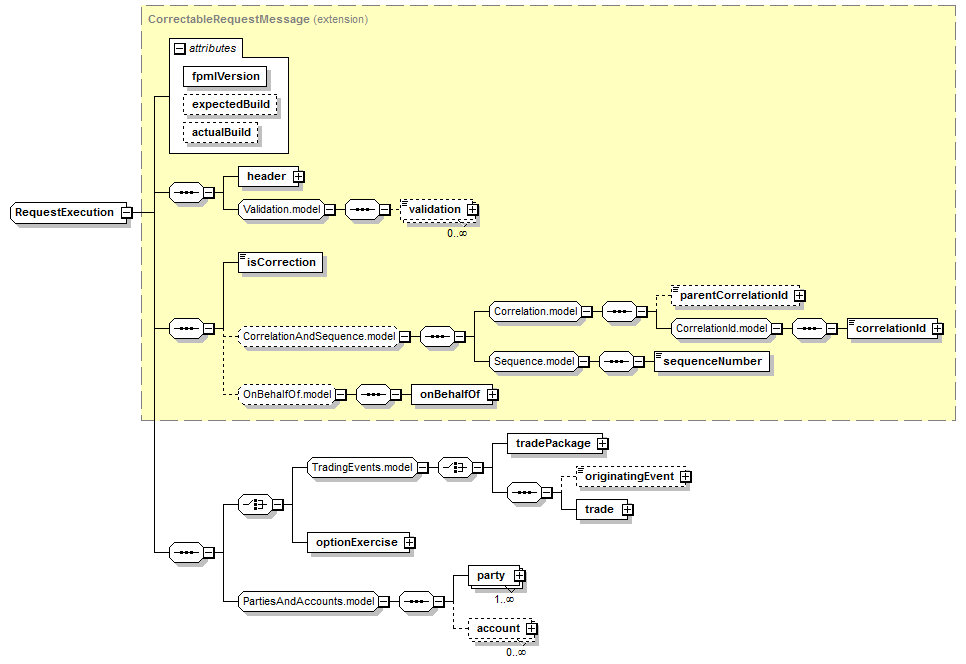

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

Content:

header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, (tradePackage | (originatingEvent?, trade) | optionExercise), party+, account*

</...>

Content Model Elements (13):

account,

correlationId,

header (defined in RequestMessage complexType),

isCorrection,

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise (in requestExecution),

originatingEvent (defined in TradingEvents.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

sequenceNumber (defined in Sequence.model group),

trade (defined in TradingEvents.model group),

tradePackage (defined in TradingEvents.model group),

validation

All Direct / Indirect Based Elements (1):

requestExecution

Known Usage Locations

As direct type of elements (1):

requestExecution

Annotation

A message requesting that an order be executed.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

RequestExecution

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="RequestExecution">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:choice>

<xsd:group ref="TradingEvents.model"/>

<xsd:element name="optionExercise" type="OptionExercise"/>

</xsd:choice>

<xsd:group ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/13)

optionExercise

Type:

OptionExercise, complex content

A structure describing an option exercise event. The optionExercise event supports partial exercise (specify the number of options or amount to exercise), full exercise (use fullExercise flag), as well as the option to request options not to be exercised.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="optionExercise" type="OptionExercise"/>
