complexType "RequestTradeReferenceInformationUpdate"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 10 elements
Defined:	globally in fpml-confirmation-processes-5-8.xsd; see XML source
Used:	at 1 location

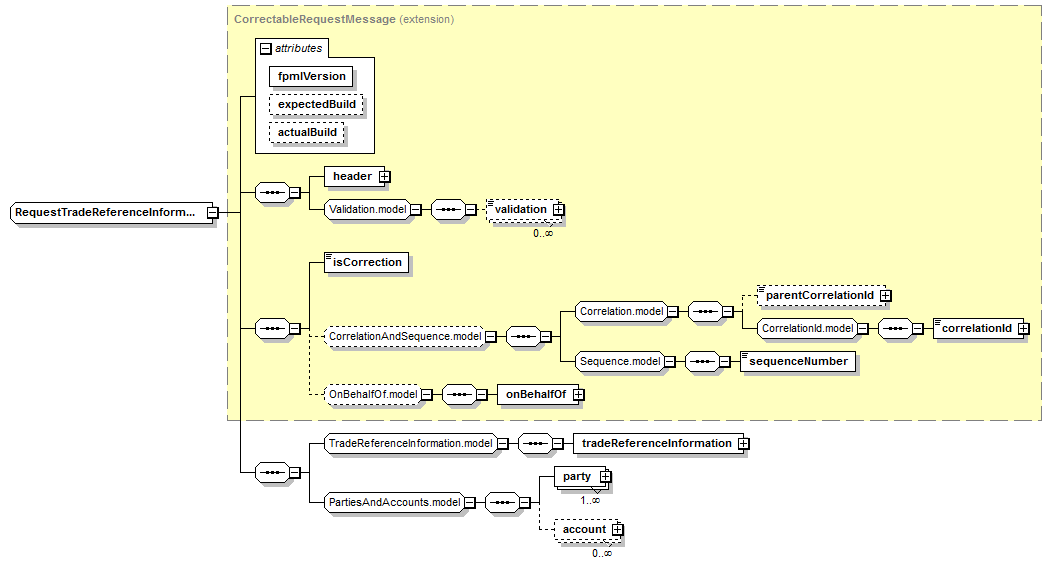

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

Content:

header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, tradeReferenceInformation, party+, account*

</...>

Content Model Elements (10):

account,

correlationId,

header (defined in RequestMessage complexType),

isCorrection,

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

sequenceNumber (defined in Sequence.model group),

tradeReferenceInformation,

validation

All Direct / Indirect Based Elements (1):

requestTradeReferenceInformationUpdate

Known Usage Locations

As direct type of elements (1):

requestTradeReferenceInformationUpdate

Annotation

Defines the structure for a message requesting information updates to a trade. The trade reference information should contain at least one trade identifier that the recipient is aware of.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

RequestTradeReferenceInformationUpdate

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="RequestTradeReferenceInformationUpdate">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:group ref="TradeReferenceInformation.model"/>

<xsd:group ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
