element <allocationTradeId> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	TradeIdentifier
Content:	complex, 1 attribute, 6 elements
Defined:	locally within Allocation complexType in fpml-doc-5-8.xsd; see XML source

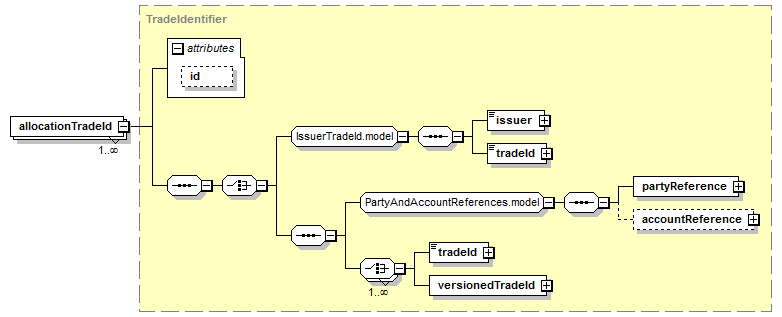

Content Model Diagram

XML Representation Summary

<allocationTradeId

xsd:ID

Content:

(issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)

</allocationTradeId>

Content model elements (6):

accountReference (defined in PartyAndAccountReferences.model group),

issuer (defined in IssuerTradeId.model group),

partyReference (defined in PartyAndAccountReferences.model group),

tradeId (defined in IssuerTradeId.model group),

tradeId (defined in TradeIdentifier complexType),

versionedTradeId

Included in content model of elements (1):

allocation

Annotation

Unique ID for the allocation. Multiple allocation trade IDs are provided to allow for the use of USI/UTI representations along with party-specific trade identifiers.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="allocationTradeId" type="TradeIdentifier"/>
