complexType "Allocation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 10 elements
Defined:
globally in fpml-doc-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

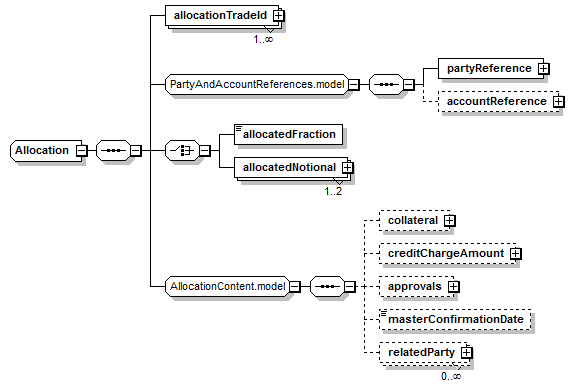

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (10):
accountReference (defined in PartyAndAccountReferences.model group),
allocatedFraction,
allocatedNotional,
allocationTradeId (in allocation),
approvals (in allocation),
collateral (in allocation),
creditChargeAmount,
masterConfirmationDate (in allocation),
partyReference (defined in PartyAndAccountReferences.model group),
relatedParty (in allocation)
All Direct / Indirect Based Elements (1):
allocation
Known Usage Locations
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="Allocation">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="allocationTradeId" type="TradeIdentifier"/>
<xsd:choice>
<xsd:element name="allocatedFraction" type="xsd:decimal"/>
<xsd:element maxOccurs="2" name="allocatedNotional" type="Money"/>
</xsd:choice>
<xsd:group ref="AllocationContent.model"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/10)
allocatedFraction
Type:
xsd:decimal, predefined, simple content
The fractional allocation (0.45 = 45%) of the notional and "block" fees to this particular client subaccount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="allocatedFraction" type="xsd:decimal"/>
allocatedNotional
Type:
Money, complex content
The notional allocation (amount and currency) to this particular client account.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="2" name="allocatedNotional" type="Money"/>
allocationTradeId
Type:
TradeIdentifier, complex content
Unique ID for the allocation. Multiple allocation trade IDs are provided to allow for the use of USI/UTI representations along with party-specific trade identifiers.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="allocationTradeId" type="TradeIdentifier"/>
