complexType "CreditDerivativesNotices"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-doc-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

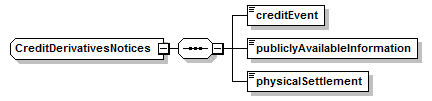

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
creditEvent (in creditDerivativesNotices),
physicalSettlement (in creditDerivativesNotices),
publiclyAvailableInformation (in creditDerivativesNotices)
All Direct / Indirect Based Elements (1):
creditDerivativesNotices
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="CreditDerivativesNotices">
<xsd:sequence>
<xsd:element name="creditEvent" type="xsd:boolean"/>
<xsd:element name="publiclyAvailableInformation" type="xsd:boolean"/>
<xsd:element name="physicalSettlement" type="xsd:boolean"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
creditEvent
Type:
xsd:boolean, predefined, simple content
This element corresponds to the Credit Event Notice Delivered Under Old Transaction and Deemed Delivered Under New Transaction under the EXHIBIT C to 2004 ISDA Novation Definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="creditEvent" type="xsd:boolean"/>
physicalSettlement
Type:
xsd:boolean, predefined, simple content
This element corresponds to the Notice of Intended Physical Settlement Delivered Under Old Transaction under the EXHIBIT C to 2004 ISDA Novation Definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="physicalSettlement" type="xsd:boolean"/>
publiclyAvailableInformation
Type:
xsd:boolean, predefined, simple content
This element corresponds to the Notice of Publicly Available Information Delivered Under Old Transaction and Deemed Delivered Under New Transaction under the EXHIBIT C to 2004 ISDA Novation Definitions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="publiclyAvailableInformation" type="xsd:boolean"/>
