complexType "PackageSummary"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 5 elements
Defined:	globally in fpml-doc-5-8.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 1 location

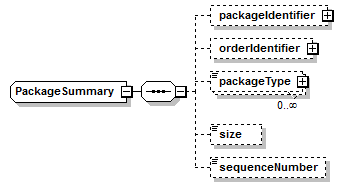

Content Model Diagram

XML Representation Summary

<...>

Content:

packageIdentifier?, orderIdentifier?, packageType*, size?, sequenceNumber?

</...>

Content Model Elements (5):

orderIdentifier (in originatingPackage),

packageIdentifier (in originatingPackage),

packageType (in originatingPackage),

sequenceNumber (in originatingPackage),

size (in originatingPackage)

All Direct / Indirect Based Elements (1):

originatingPackage

Known Usage Locations

As direct type of elements (1):

originatingPackage

Annotation

Summary information about a trade package.

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="PackageSummary">

<xsd:sequence>

<xsd:element minOccurs="0" name="packageIdentifier" type="IssuerTradeId"/>

<xsd:element minOccurs="0" name="orderIdentifier" type="OrderIdentifier"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="packageType" type="PackageType"/>

<xsd:element minOccurs="0" name="size" type="PositiveDecimal"/>

<xsd:element minOccurs="0" name="sequenceNumber" type="PositiveDecimal"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 5/5)

orderIdentifier

Type:

OrderIdentifier, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="orderIdentifier" type="OrderIdentifier"/>

packageIdentifier

Type:

IssuerTradeId, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="packageIdentifier" type="IssuerTradeId"/>

packageType

Type:

PackageType, simple content

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="packageType" type="PackageType"/>

sequenceNumber

Type:

PositiveDecimal, simple content

Simple Content

xsd:decimal

minExclusive:

XML Source (see within schema source)

<xsd:element minOccurs="0" name="sequenceNumber" type="PositiveDecimal"/>

size

Type:

PositiveDecimal, simple content

Simple Content

xsd:decimal

minExclusive:

XML Source (see within schema source)

<xsd:element minOccurs="0" name="size" type="PositiveDecimal"/>
