complexType "PartyPortfolioName"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-doc-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:
at 1 location

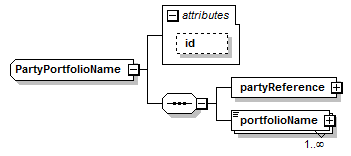

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (2):
All Direct / Indirect Based Elements (1):
partyPortfolioName
Known Usage Locations
Annotation
A type to represent a portfolio name for a particular party.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="PartyPortfolioName">
<xsd:sequence>
<xsd:element name="partyReference" type="PartyReference"/>
<xsd:element maxOccurs="unbounded" name="portfolioName" type="PortfolioName"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/2)
partyReference
Type:
PartyReference, empty content
A pointer style reference to a party identifier defined elsewhere in the document. The party referenced has allocated the trade identifier.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="partyReference" type="PartyReference"/>
portfolioName
Type:
PortfolioName, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="portfolioName" type="PortfolioName"/>
