complexType "ReturnSwapPaymentDates"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-eq-shared-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:
at 1 location

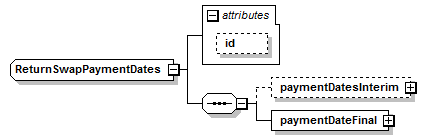

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (2):
paymentDateFinal, paymentDatesInterim
All Direct / Indirect Based Elements (1):
paymentDates (in rateOfReturn)
Known Usage Locations
Annotation
A type describing the return payment dates of the swap.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="ReturnSwapPaymentDates">
<xsd:sequence>
<xsd:element minOccurs="0" name="paymentDatesInterim" type="AdjustableOrRelativeDates"/>
<xsd:element name="paymentDateFinal" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/2)
paymentDateFinal
Type:
AdjustableOrRelativeDate, complex content
Specifies the final payment date of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically refer to the final valuation date and add a lag corresponding to the settlement cycle of the underlyer.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="paymentDateFinal" type="AdjustableOrRelativeDate"/>
paymentDatesInterim
Type:
AdjustableOrRelativeDates, complex content
Specifies the interim payment dates of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDates component), this element will typically refer to the valuation dates and add a lag corresponding to the settlement cycle of the underlyer.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="paymentDatesInterim" type="AdjustableOrRelativeDates"/>
