complexType "AdjustableOrRelativeDates"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:
at 7 locations

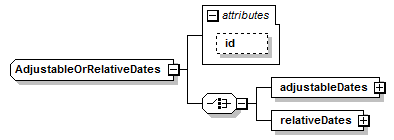

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (2):
adjustableDates (defined in AdjustableOrRelativeDates complexType),
relativeDates (defined in AdjustableOrRelativeDates complexType)
All Direct / Indirect Based Elements (7):
bermudaExerciseDates (in bermudaExercise),
commencementDates,
expirationDates (in americanExercise defined in CommodityPhysicalExercise complexType),
paymentDatesInterim,
relevantUnderlyingDate (in americanExercise),
relevantUnderlyingDate (in bermudaExercise),
relevantUnderlyingDate (in europeanExercise)
Known Usage Locations
Annotation
A type giving the choice between defining a series of dates as an explicit list of dates together with applicable adjustments or as relative to some other series of (anchor) dates.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="AdjustableOrRelativeDates">
<xsd:choice>
<xsd:element name="adjustableDates" type="AdjustableDates"/>
<xsd:element name="relativeDates" type="RelativeDates"/>
</xsd:choice>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/2)
adjustableDates
Type:
AdjustableDates, complex content
A series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="adjustableDates" type="AdjustableDates"/>
relativeDates
Type:
RelativeDates, complex content
A series of dates specified as some offset to another series of dates (the anchor dates).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="relativeDates" type="RelativeDates"/>
