complexType "EquityDerivativeLongFormBase"
Namespace:
Content:
complex, 1 attribute, 20 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-eqd-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:

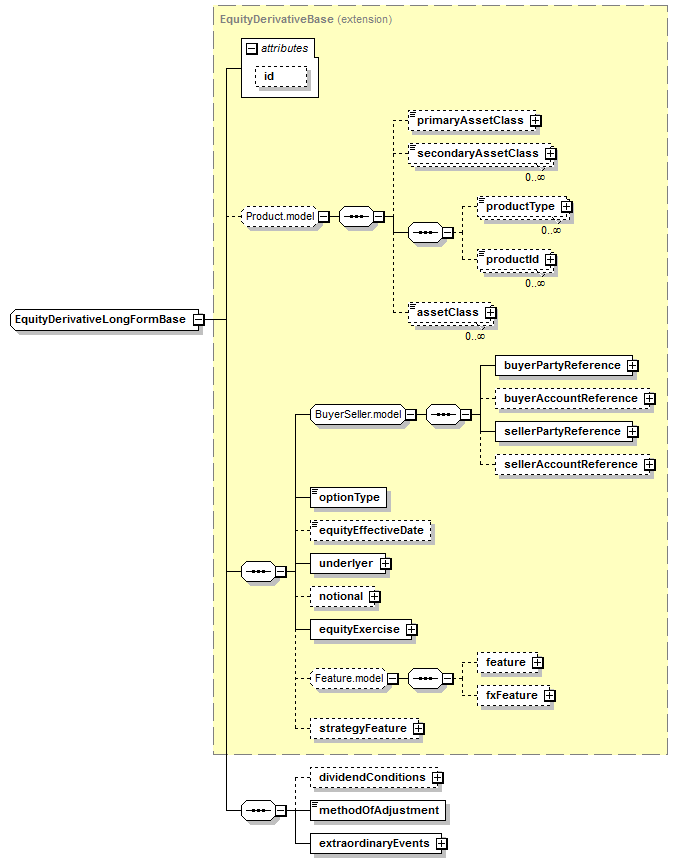

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (20):
assetClass,
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
dividendConditions (defined in EquityDerivativeLongFormBase complexType),
equityEffectiveDate,
equityExercise (defined in EquityDerivativeBase complexType),
extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),
feature (defined in Feature.model group),
fxFeature (defined in Feature.model group),
methodOfAdjustment (defined in EquityDerivativeLongFormBase complexType),
notional (defined in EquityDerivativeBase complexType),
optionType (defined in EquityDerivativeBase complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
strategyFeature (defined in EquityDerivativeBase complexType),
underlyer (defined in EquityDerivativeBase complexType)
Known Direct Subtypes (2):
EquityForward, EquityOption
All Direct / Indirect Based Elements (2):
equityForward, equityOption
Known Usage Locations
Annotation
type for defining the common features of equity derivatives.
Type Definition Detail
Type Derivation Tree
Product (extension)
  EquityDerivativeBase (extension)
      EquityDerivativeLongFormBase
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType abstract="true" name="EquityDerivativeLongFormBase">
<xsd:complexContent>
<xsd:extension base="EquityDerivativeBase">
<xsd:sequence>
<xsd:element minOccurs="0" name="dividendConditions" type="DividendConditions"/>
<xsd:element name="methodOfAdjustment" type="MethodOfAdjustmentEnum"/>
<xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/20)
dividendConditions
Type:
DividendConditions, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="dividendConditions" type="DividendConditions"/>

extraordinaryEvents
Type:
ExtraordinaryEvents, complex content
Where the underlying is shares, specifies events affecting the issuer of those shares that may require the terms of the transaction to be adjusted.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="extraordinaryEvents" type="ExtraordinaryEvents"/>

methodOfAdjustment
Type:
MethodOfAdjustmentEnum, simple content
Defines how adjustments will be made to the contract should one or more of the extraordinary events occur.
Simple Content
enumeration of xsd:token
Enumeration:
"CalculationAgent"
 -
The Calculation Agent has the right to adjust the terms of the trade following a corporate action.
"OptionsExchange"
 -
The trade will be adjusted in accordance with any adjustment made by the exchange on which options on the underlying are listed.
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="methodOfAdjustment" type="MethodOfAdjustmentEnum"/>
