complexType "FxAmericanExercise"
Namespace:
Content:
complex, 1 attribute, 6 elements
Defined:
globally in fpml-fx-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:

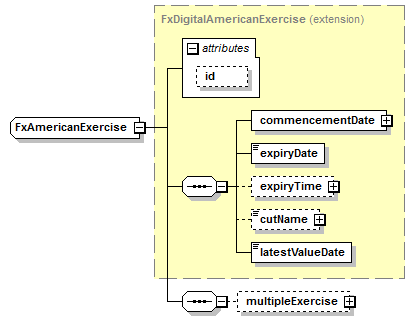

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (6):
commencementDate (defined in FxDigitalAmericanExercise complexType),
cutName (defined in FxDigitalAmericanExercise complexType),
expiryDate (defined in FxDigitalAmericanExercise complexType),
expiryTime (defined in FxDigitalAmericanExercise complexType),
latestValueDate,
multipleExercise (in americanExercise in fxOption)
All Direct / Indirect Based Elements (1):
americanExercise (in fxOption)
Known Usage Locations
Annotation
Describes the characteristics for american exercise of FX products.
Type Definition Detail
Type Derivation Tree
Exercise (extension)
      FxAmericanExercise
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FxAmericanExercise">
<xsd:complexContent>
<xsd:extension base="FxDigitalAmericanExercise">
<xsd:sequence>
<xsd:element minOccurs="0" name="multipleExercise" type="FxMultipleExercise"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/6)
multipleExercise
Type:
FxMultipleExercise, complex content
Characteristics for multiple exercise.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="multipleExercise" type="FxMultipleExercise"/>
