complexType "FxDigitalAmericanExercise"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 5 elements
Defined:	globally in fpml-fx-5-8.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 2 locations

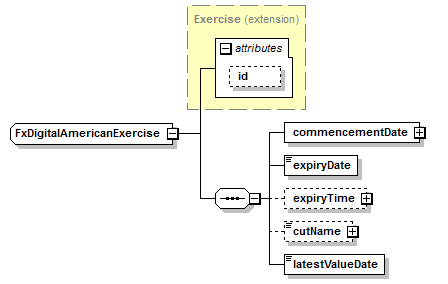

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

commencementDate, expiryDate, expiryTime?, cutName?, latestValueDate

</...>

Content Model Elements (5):

commencementDate (defined in FxDigitalAmericanExercise complexType),

cutName (defined in FxDigitalAmericanExercise complexType),

expiryDate (defined in FxDigitalAmericanExercise complexType),

expiryTime (defined in FxDigitalAmericanExercise complexType),

latestValueDate

Known Direct Subtypes (1):

FxAmericanExercise

All Direct / Indirect Based Elements (2):

americanExercise (in fxDigitalOption),

americanExercise (in fxOption)

Known Usage Locations

In derivations of other global types (1):

FxAmericanExercise (as extension base)
As direct type of elements (1):

americanExercise (in fxDigitalOption)

Annotation

Descrines the characteristics for American exercise in FX digital options.

Type Definition Detail

Type Derivation Tree

Exercise (extension)

FxDigitalAmericanExercise

XML Source (w/o annotations (6); see within schema source)

<xsd:complexType name="FxDigitalAmericanExercise">

<xsd:complexContent>

<xsd:extension base="Exercise">

<xsd:sequence>

<xsd:element name="commencementDate" type="AdjustableOrRelativeDate"/>

<xsd:element name="expiryDate" type="xsd:date"/>

<xsd:element minOccurs="0" name="expiryTime" type="BusinessCenterTime"/>

<xsd:element minOccurs="0" name="cutName" type="CutName"/>

<xsd:element name="latestValueDate" type="xsd:date"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 5/5)

commencementDate

Type:

AdjustableOrRelativeDate, complex content

The earliest date on which the option can be exercised.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commencementDate" type="AdjustableOrRelativeDate"/>

cutName

Type:

CutName, simple content

The code by which the expiry time is known in the market.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="cutName" type="CutName"/>

expiryDate

Type:

xsd:date, predefined, simple content

The latest date on which the option can be exercised.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="expiryDate" type="xsd:date"/>

expiryTime

Type:

BusinessCenterTime, complex content

Time at which the option expires on the expiry date.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="expiryTime" type="BusinessCenterTime"/>

latestValueDate

Type:

xsd:date, predefined, simple content

The latest date on which both currencies traded will settle.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="latestValueDate" type="xsd:date"/>
