complexType "FxFlexibleForwardExecutionPeriod"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-fx-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 1 location

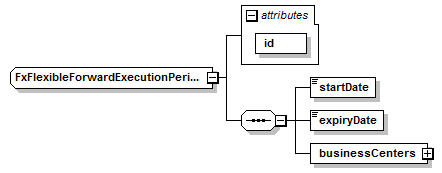

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (3):
All Direct / Indirect Based Elements (1):
executionPeriodDates
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FxFlexibleForwardExecutionPeriod">
<xsd:sequence>
<xsd:element name="startDate" type="xsd:date"/>
<xsd:element name="expiryDate" type="xsd:date"/>
<xsd:element name="businessCenters" type="BusinessCenters"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID" use="required"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
required
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID" use="required"/>
Content Element Detail (all declarations; defined within this component only; 3/3)
businessCenters
Type:
BusinessCenters, complex content
Business centers for determination of execution period business days.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="businessCenters" type="BusinessCenters"/>
expiryDate
Type:
xsd:date, predefined, simple content
Expiry (maturity) date of the execution period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expiryDate" type="xsd:date"/>
startDate
Type:
xsd:date, predefined, simple content
Start date of the execution period/window.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="startDate" type="xsd:date"/>
