element <floatingRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FloatingRate
Content:
complex, 1 attribute, 7 elements
Defined:
locally within TradeUnderlyer2 complexType in fpml-generic-5-8.xsd; see XML source

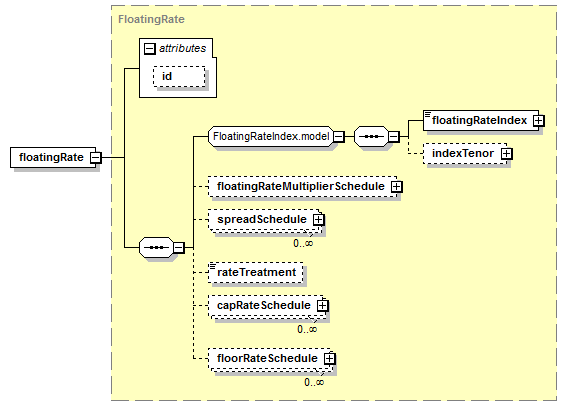

Content Model Diagram
XML Representation Summary
<floatingRate

 =
xsd:ID

>

Content:
</floatingRate>
Content model elements (7):
capRateSchedule,
floatingRateIndex (defined in FloatingRateIndex.model group),
floatingRateMultiplierSchedule,
floorRateSchedule,
indexTenor (defined in FloatingRateIndex.model group),
rateTreatment,
spreadSchedule (defined in FloatingRate complexType)
Included in content model of elements (1):
underlyer (defined in GenericProduct complexType)
Annotation
A floating rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="floatingRate" type="FloatingRate"/>
