complexType "AccruingFeeChange"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

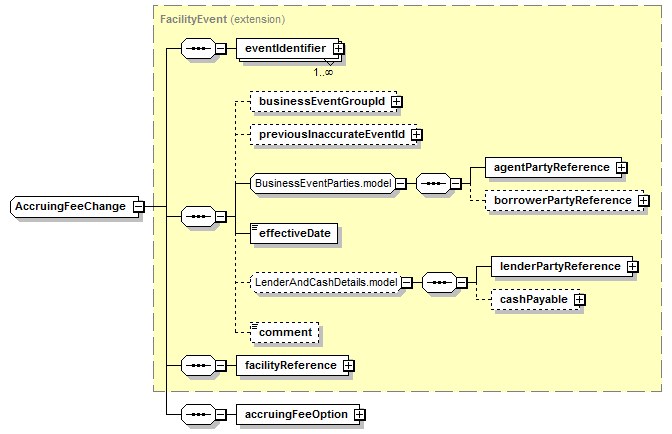

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (11):
accruingFeeOption (in accruingFeeChange),
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityEvent complexType),
lenderPartyReference,
previousInaccurateEventId
All Direct / Indirect Based Elements (1):
accruingFeeChange
Known Usage Locations
Annotation
An event describing a future rate or period change in one of the accruing fees associated with a specific facility.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityEvent (extension)
          AccruingFeeChange
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="AccruingFeeChange">
<xsd:complexContent>
<xsd:extension base="FacilityEvent">
<xsd:sequence>
<xsd:element name="accruingFeeOption" type="AccruingFeeOption"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
accruingFeeOption
Type:
AccruingFeeOption, complex content
Defines new rate and the date on which the rate is no longer valid.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="accruingFeeOption" type="AccruingFeeOption"/>
