complexType "FacilityEvent"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 10 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 12 locations

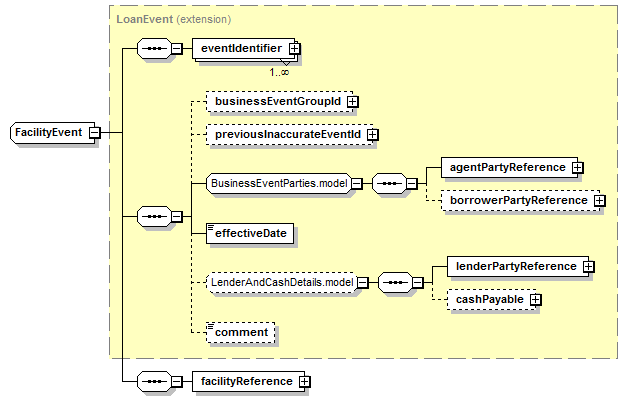

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference

</...>

Content Model Elements (10):

agentPartyReference (defined in BusinessEventParties.model group),

borrowerPartyReference (defined in BusinessEventParties.model group),

businessEventGroupId,

cashPayable,

comment,

effectiveDate (defined in LoanEvent complexType),

eventIdentifier (defined in AbstractEventRequireId complexType),

facilityReference (defined in FacilityEvent complexType),

lenderPartyReference,

previousInaccurateEventId

Known Direct Subtypes (10):

AccruingFeeChange, AccruingFeeExpiry, AccruingFeePayment, AccruingPikOptionChange, AccruingPikPayment, CommitmentAdjustment, FacilityTermination, FixedRateOptionChange, FloatingRateOptionChange, LcOptionChange

All Direct / Indirect Based Elements (14):

accruingFeeChange,

accruingFeeChangeGroup,

accruingFeeExpiry,

accruingFeePayment,

accruingPikOptionChange,

accruingPikPayment,

commitmentAdjustment,

commitmentAdjustment (in repaymentWithCANotification),

commitmentAdjustment (in rolloverNotification),

facilityEventGroup,

facilityTermination,

fixedRateOptionChange,

floatingRateOptionChange,

lcOptionChange

Known Usage Locations

In derivations of other global types (10):

AccruingFeeChange (as extension base),

AccruingFeeExpiry (as extension base),

AccruingFeePayment (as extension base),

AccruingPikOptionChange (as extension base),

AccruingPikPayment (as extension base),

CommitmentAdjustment (as extension base),

FacilityTermination (as extension base),

FixedRateOptionChange (as extension base),

FloatingRateOptionChange (as extension base),

LcOptionChange (as extension base)

As direct type of elements (2):

accruingFeeChangeGroup, facilityEventGroup

Annotation

An abstract base type for all facility related business events.

Type Definition Detail

Type Derivation Tree

AbstractEventRequireId (extension)

LoanEvent (extension)

FacilityEvent

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="FacilityEvent">

<xsd:complexContent>

<xsd:extension base="LoanEvent">

<xsd:sequence>

<xsd:element name="facilityReference" type="FacilityReference"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/10)

facilityReference

Type:

FacilityReference, empty content

XML Source (see within schema source)

<xsd:element name="facilityReference" type="FacilityReference"/>
