complexType "CommitmentAdjustment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 16 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 3 locations

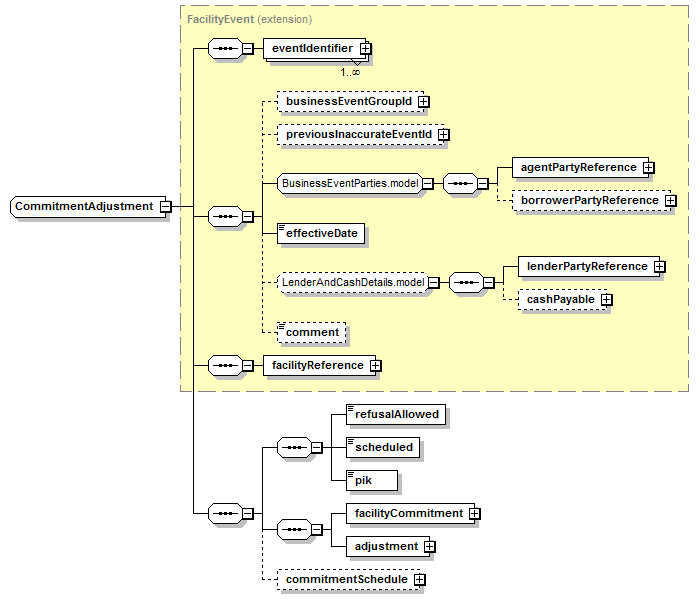

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (16):
adjustment (defined in CommitmentAdjustment complexType),
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
commitmentSchedule (defined in CommitmentAdjustment complexType),
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityCommitment,
facilityReference (defined in FacilityEvent complexType),
lenderPartyReference,
pik,
previousInaccurateEventId,
refusalAllowed (defined in CommitmentAdjustment complexType),
scheduled
All Direct / Indirect Based Elements (3):
Known Usage Locations
Annotation
An event defining changes in facility commitment.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityEvent (extension)
          CommitmentAdjustment
XML Source (w/o annotations (7); see within schema source)
<xsd:complexType name="CommitmentAdjustment">
<xsd:complexContent>
<xsd:extension base="FacilityEvent">
<xsd:sequence>
<xsd:sequence>
<xsd:element name="refusalAllowed" type="xsd:boolean"/>
<xsd:element name="scheduled" type="xsd:boolean"/>
<xsd:element name="pik" type="xsd:boolean"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="facilityCommitment" type="FacilityCommitment"/>
<xsd:element name="adjustment" type="Adjustment"/>
</xsd:sequence>
<xsd:element minOccurs="0" name="commitmentSchedule" type="CommitmentSchedule"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/16)
adjustment
Type:
Adjustment, complex content
Defines the type of adjustment applied - increase or decrease.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="adjustment" type="Adjustment"/>
commitmentSchedule
Type:
CommitmentSchedule, complex content
The amortization schedule associated with the facility commitment.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="commitmentSchedule" type="CommitmentSchedule"/>
facilityCommitment
Type:
FacilityCommitment, complex content
The global/lender commitment amount stated AFTER a commitment adjustment has taken place.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="facilityCommitment" type="FacilityCommitment"/>
pik
Type:
xsd:boolean, predefined, simple content
Defines whether the commitment adjustment is related to a PIK.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="pik" type="xsd:boolean"/>
refusalAllowed
Type:
xsd:boolean, predefined, simple content
Defines whether the lender has an option to accept or deny the commitment change.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="refusalAllowed" type="xsd:boolean"/>
scheduled
Type:
xsd:boolean, predefined, simple content
Defines whether the commitment adjustment is scheduled.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="scheduled" type="xsd:boolean"/>
