complexType "FacilityExtensionFeePayment"
Namespace:
Content:
complex, 12 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:

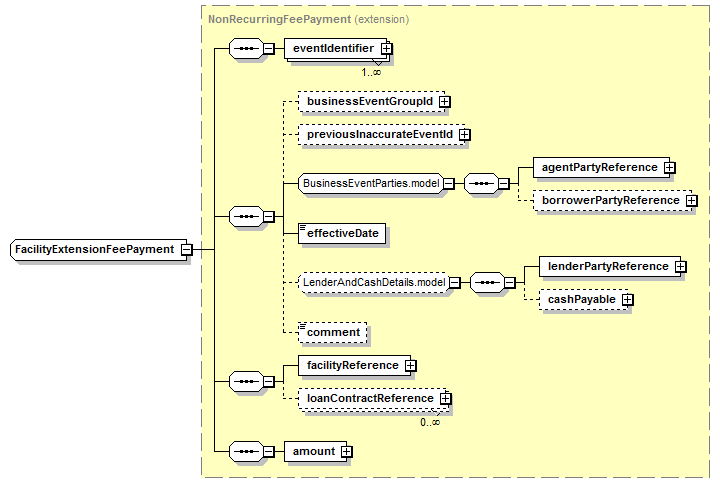

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (12):
agentPartyReference (defined in BusinessEventParties.model group),
amount (defined in NonRecurringFeePayment complexType),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityContractEvent complexType),
lenderPartyReference,
loanContractReference (defined in FacilityContractEvent complexType),
previousInaccurateEventId
All Direct / Indirect Based Elements (1):
facilityExtensionFeePayment
Known Usage Locations
Annotation
This fee represents any fee paid by the borrower to the syndicate lenders for extending an existing facility.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityContractEvent (extension)
          NonRecurringFeePayment (extension)
              FacilityExtensionFeePayment
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="true" name="FacilityExtensionFeePayment">
<xsd:complexContent>
<xsd:extension base="NonRecurringFeePayment"/>
</xsd:complexContent>
</xsd:complexType>
