complexType "FacilityContractEvent"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 11 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 6 locations

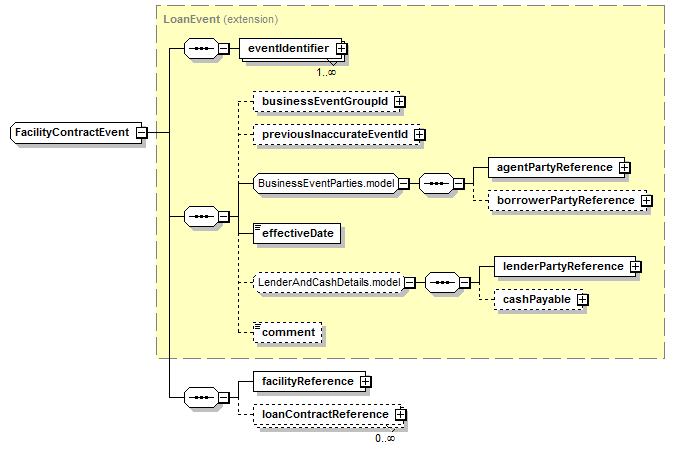

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference, loanContractReference*

</...>

Content Model Elements (11):

agentPartyReference (defined in BusinessEventParties.model group),

borrowerPartyReference (defined in BusinessEventParties.model group),

businessEventGroupId,

cashPayable,

comment,

effectiveDate (defined in LoanEvent complexType),

eventIdentifier (defined in AbstractEventRequireId complexType),

facilityReference (defined in FacilityContractEvent complexType),

lenderPartyReference,

loanContractReference (defined in FacilityContractEvent complexType),

previousInaccurateEventId

Known Direct Subtypes (5):

DefaultRateExpiry, FacilityRateChangeEvent, MandatoryCostRateExpiry, NonRecurringFeePayment, PenaltyRateExpiry

Known Indirect Subtypes (10):

AmendmentFeePayment, BreakageFeePayment, DefaultRateChange, FacilityExtensionFeePayment, FundingFeePayment, MandatoryCostRateChange, MiscFeePayment, PenaltyRateChange, UpfrontFeePayment, WaiverFeePayment

All Direct / Indirect Based Elements (16):

amendmentFeePayment,

breakageFeePayment,

breakageFeePayment (in prepaymentNotification),

defaultRateChange,

defaultRateExpiry,

facilityExtensionFeePayment,

facilityFeePaymentGroup,

facilityRateChangeGroup,

fundingFeePayment,

mandatoryCostRateChange,

mandatoryCostRateExpiry,

Known Usage Locations

In derivations of other global types (5):

DefaultRateExpiry (as extension base),

FacilityRateChangeEvent (as extension base),

MandatoryCostRateExpiry (as extension base),

NonRecurringFeePayment (as extension base),

PenaltyRateExpiry (as extension base)

As direct type of elements (1):

facilityRateChangeGroup

Annotation

An abstract base type for all facility related business events.

Type Definition Detail

Type Derivation Tree

AbstractEventRequireId (extension)

LoanEvent (extension)

FacilityContractEvent

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType abstract="true" name="FacilityContractEvent">

<xsd:complexContent>

<xsd:extension base="LoanEvent">

<xsd:sequence>

<xsd:element name="facilityReference" type="FacilityReference"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="loanContractReference" type="LoanContractReference"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/11)

facilityReference

Type:

FacilityReference, empty content

XML Source (see within schema source)

<xsd:element name="facilityReference" type="FacilityReference"/>

loanContractReference

Type:

LoanContractReference, empty content

A loan contract summary structure.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="loanContractReference" type="LoanContractReference"/>
