complexType "FacilityOutstandingsPositionStatement"
Namespace:
Content:
complex, 3 attributes, 17 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:

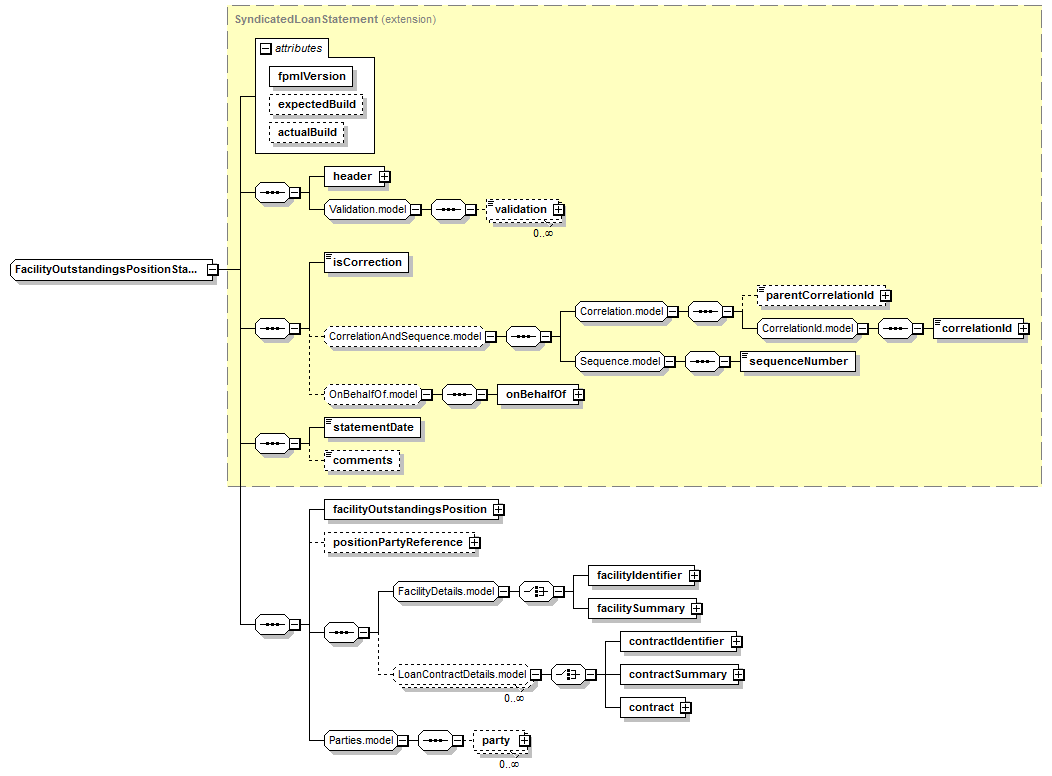

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (17):
comments (defined in SyndicatedLoanStatement complexType),
contract (defined in LoanContractDetails.model group),
contractIdentifier,
contractSummary,
correlationId,
facilityIdentifier (defined in FacilityDetails.model group),
facilityOutstandingsPosition (in facilityOutstandingsPositionStatement),
facilitySummary,
header (defined in RequestMessage complexType),
isCorrection,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in Parties.model group),
positionPartyReference (in facilityOutstandingsPositionStatement),
sequenceNumber (defined in Sequence.model group),
statementDate,
validation
All Direct / Indirect Based Elements (1):
facilityOutstandingsPositionStatement
Known Usage Locations
Annotation
This represents multiple current facility commitment amounts on either the global or both the global and lender postion levels.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              SyndicatedLoanStatement (extension)
                  FacilityOutstandingsPositionStatement
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FacilityOutstandingsPositionStatement">
<xsd:complexContent>
<xsd:extension base="SyndicatedLoanStatement">
<xsd:sequence>
<xsd:element name="facilityOutstandingsPosition" type="FacilityOutstandingsPosition"/>
<xsd:element minOccurs="0" name="positionPartyReference" type="PartyReference"/>
<xsd:sequence>
<xsd:group ref="FacilityDetails.model"/>
<xsd:group maxOccurs="unbounded" minOccurs="0" ref="LoanContractDetails.model"/>
</xsd:sequence>
<xsd:group ref="Parties.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/17)
facilityOutstandingsPosition
Type:
A facility position definition containing full details of either the global commitment and outstanding amounts or a specific lender's position breakdown.
XML Source (w/o annotations (1); see within schema source)

positionPartyReference
Type:
PartyReference, empty content
A reference to the party for whom positions are being reported.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="positionPartyReference" type="PartyReference"/>
