complexType "FacilityRateChangeEvent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 12 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 3 locations

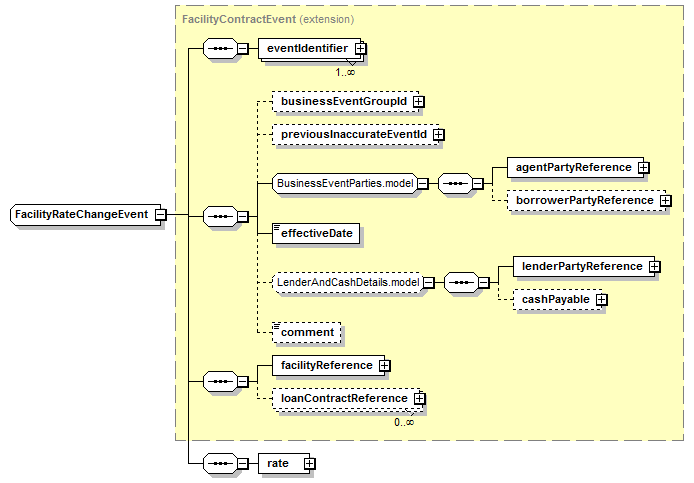

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (12):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityContractEvent complexType),
lenderPartyReference,
loanContractReference (defined in FacilityContractEvent complexType),
previousInaccurateEventId,
rate (defined in FacilityRateChangeEvent complexType)
Known Direct Subtypes (3):
DefaultRateChange, MandatoryCostRateChange, PenaltyRateChange
All Direct / Indirect Based Elements (3):
defaultRateChange, mandatoryCostRateChange, penaltyRateChange
Known Usage Locations
Annotation
An event describing changes in a facility-level rate. This will have an effect on outstanding loan contracts associated with the facility but those need to be communicated separately using LoanContractRateChange notifications.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityContractEvent (extension)
          FacilityRateChangeEvent
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="FacilityRateChangeEvent">
<xsd:complexContent>
<xsd:extension base="FacilityContractEvent">
<xsd:sequence>
<xsd:element name="rate" type="PeriodRate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/12)
rate
Type:
PeriodRate, complex content
This represents a default rate that may apply in addition to a regular margin rate (on outstanding loan contracts). This rate applied at the discretion of the agent bank, if the borrower is deemed to be in default.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="rate" type="PeriodRate"/>
