complexType "FacilityTermination" | XML Schema Documentation

complexType "FacilityTermination"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 10 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Used:	at 1 location

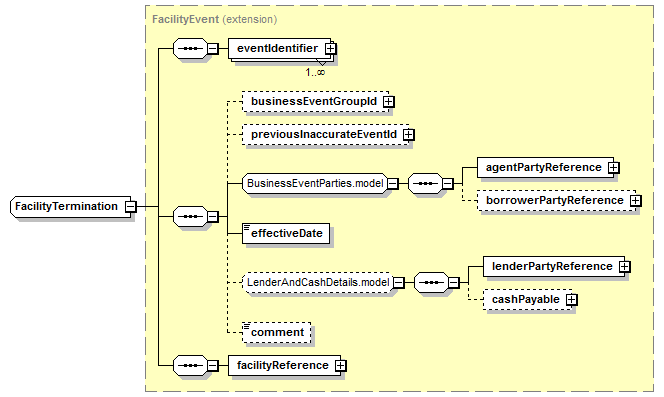

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference

</...>

Content Model Elements (10):

agentPartyReference (defined in BusinessEventParties.model group),

borrowerPartyReference (defined in BusinessEventParties.model group),

businessEventGroupId,

effectiveDate (defined in LoanEvent complexType),

eventIdentifier (defined in AbstractEventRequireId complexType),

facilityReference (defined in FacilityEvent complexType),

lenderPartyReference,

previousInaccurateEventId

All Direct / Indirect Based Elements (1):

facilityTermination

Known Usage Locations

As direct type of elements (1):

facilityTermination

Annotation

An event describing the early termination of a facility.

Type Definition Detail

Type Derivation Tree

AbstractEventRequireId (extension)

LoanEvent (extension)

FacilityEvent (extension)

FacilityTermination

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="FacilityTermination">

<xsd:complexContent>

<xsd:extension base="FacilityEvent"/>

</xsd:complexContent>

</xsd:complexType>
