complexType "FloatingRateOptionChange"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

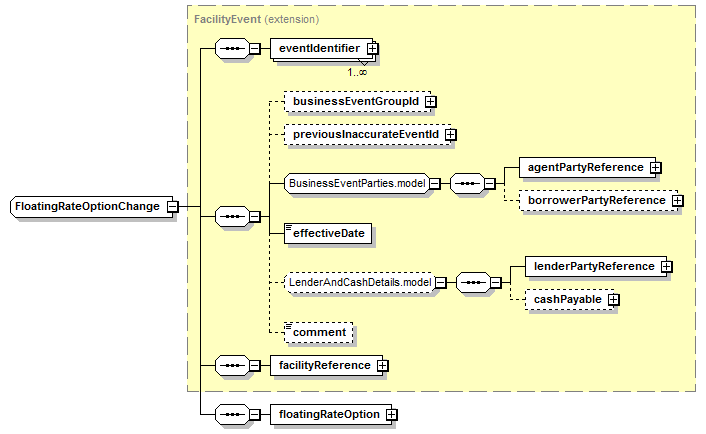

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (11):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityEvent complexType),
floatingRateOption (in floatingRateOptionChange),
lenderPartyReference,
previousInaccurateEventId
All Direct / Indirect Based Elements (1):
floatingRateOptionChange
Known Usage Locations
Annotation
A business event describing a change in a rate associated to a specific accrual option. In real terms - an example of this would be a margin rate change associated with the 3-Month LIBOR accrual option.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityEvent (extension)
          FloatingRateOptionChange
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="FloatingRateOptionChange">
<xsd:complexContent>
<xsd:extension base="FacilityEvent">
<xsd:sequence>
<xsd:element name="floatingRateOption" type="FloatingRateOption"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
floatingRateOption
Type:
FloatingRateOption, complex content
XML Source (see within schema source)
<xsd:element name="floatingRateOption" type="FloatingRateOption"/>
