complexType "FundingFeePayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 12 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:
at 1 location

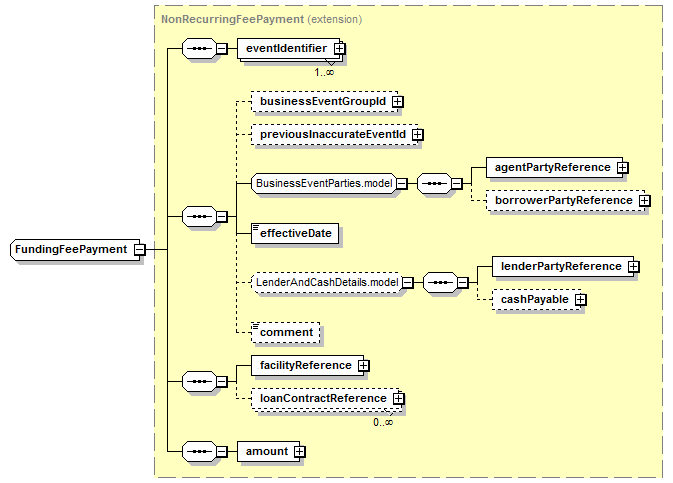

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (12):
agentPartyReference (defined in BusinessEventParties.model group),
amount (defined in NonRecurringFeePayment complexType),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityContractEvent complexType),
lenderPartyReference,
loanContractReference (defined in FacilityContractEvent complexType),
previousInaccurateEventId
All Direct / Indirect Based Elements (1):
fundingFeePayment
Known Usage Locations
Annotation
A fee associated with the funding requirements for given facility.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityContractEvent (extension)
          NonRecurringFeePayment (extension)
              FundingFeePayment
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="true" name="FundingFeePayment">
<xsd:complexContent>
<xsd:extension base="NonRecurringFeePayment"/>
</xsd:complexContent>
</xsd:complexType>
