complexType "MiscFeePayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 13 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

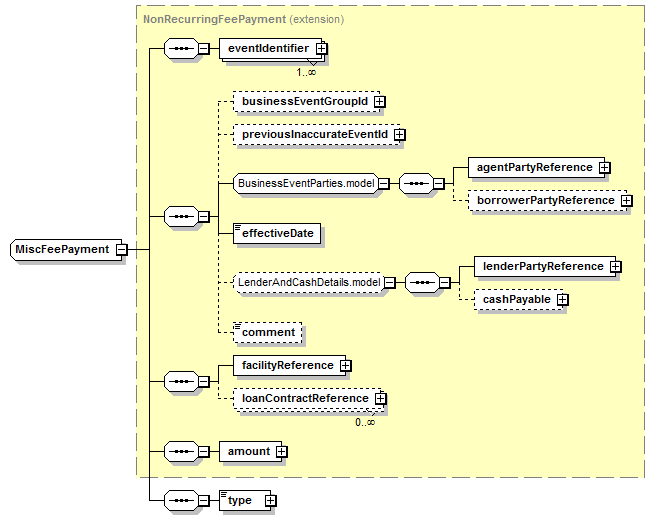

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (13):
agentPartyReference (defined in BusinessEventParties.model group),
amount (defined in NonRecurringFeePayment complexType),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId,
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityContractEvent complexType),
lenderPartyReference,
loanContractReference (defined in FacilityContractEvent complexType),
previousInaccurateEventId,
type (in miscFeePayment)
All Direct / Indirect Based Elements (1):
miscFeePayment
Known Usage Locations
Annotation
An event describing a non-recurring fee being paid at either the loan contract or facility level.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityContractEvent (extension)
          NonRecurringFeePayment (extension)
              MiscFeePayment
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="true" name="MiscFeePayment">
<xsd:complexContent>
<xsd:extension base="NonRecurringFeePayment">
<xsd:sequence>
<xsd:element name="type" type="NonRecurringMiscFeeType"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
type
Type:
NonRecurringMiscFeeType, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="type" type="NonRecurringMiscFeeType"/>
