complexType "TermCurve"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-mktenv-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 7 locations

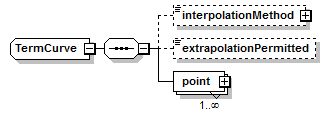

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
interpolationMethod (defined in TermCurve complexType),
point (defined in TermCurve complexType)
All Direct / Indirect Based Elements (7):
Known Usage Locations
Annotation
A curve consisting only of values over a term. This is a restricted form of One Dimensional Structure.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="TermCurve">
<xsd:sequence>
<xsd:element minOccurs="0" name="interpolationMethod" type="InterpolationMethod"/>
<xsd:element minOccurs="0" name="extrapolationPermitted" type="xsd:boolean"/>
<xsd:element maxOccurs="unbounded" name="point" type="TermPoint"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
extrapolationPermitted
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="extrapolationPermitted" type="xsd:boolean"/>
interpolationMethod
Type:
InterpolationMethod, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element minOccurs="0" name="interpolationMethod" type="InterpolationMethod"/>
point
Type:
TermPoint, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="point" type="TermPoint"/>
