complexType "TermPoint"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 6 elements
Defined:
globally in fpml-mktenv-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 1 location

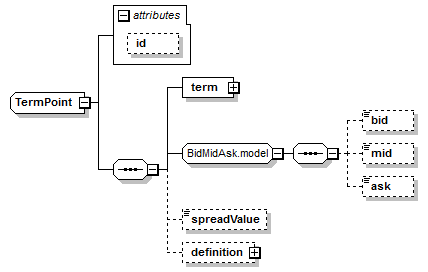

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (6):
definition (in point defined in TermCurve complexType),
term (in point defined in TermCurve complexType)
All Direct / Indirect Based Elements (1):
point (defined in TermCurve complexType)
Known Usage Locations
Annotation
A value point that can have a time dimension. Allows bid, mid, ask, and spread values to be represented.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="TermPoint">
<xsd:sequence>
<xsd:element name="term" type="TimeDimension"/>
<xsd:group ref="BidMidAsk.model"/>
<xsd:element minOccurs="0" name="spreadValue" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="definition" type="AssetReference"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 3/6)
definition
Type:
AssetReference, empty content
An optional reference to an underlying asset that defines the meaning of the value, i.e. the product that the value corresponds to. For example, this could be a discount instrument.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="definition" type="AssetReference"/>
spreadValue
Type:
xsd:decimal, predefined, simple content
The spread value can be used in conjunction with the "mid" value to define the bid and the ask value.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="spreadValue" type="xsd:decimal"/>
term
Type:
TimeDimension, complex content
The time dimension of the point (tenor and/or date)
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="term" type="TimeDimension"/>
