complexType "ServiceNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 10 elements
Defined:
globally in fpml-msg-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

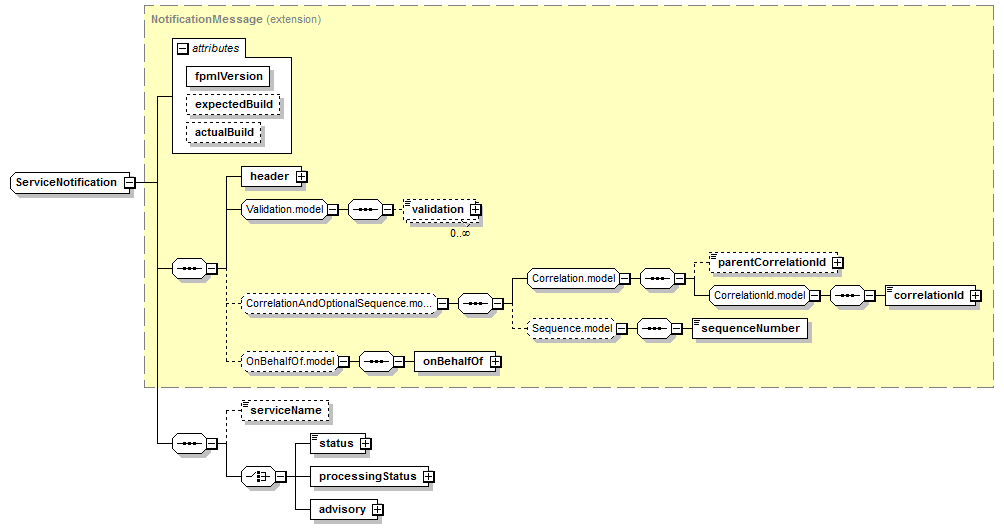

Content Model Diagram
XML Representation Summary
<...

 =
xsd:token
 =
xsd:positiveInteger
 =
"3"

>

Content:
</...>
Content Model Elements (10):
header (defined in NotificationMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
serviceNotification
Known Usage Locations
Annotation
A type defining the content model for a message that allows a service to send a notification message to a user of the service.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      NotificationMessage (extension)
          ServiceNotification
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="ServiceNotification">
<xsd:complexContent>
<xsd:extension base="NotificationMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="serviceName" type="NormalizedString"/>
<xsd:choice>
<xsd:element name="status" type="ServiceStatus"/>
<xsd:element name="processingStatus" type="ServiceProcessingStatus"/>
<xsd:element name="advisory" type="ServiceAdvisory"/>
</xsd:choice>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/10)
advisory
Type:
ServiceAdvisory, complex content
A human-readable message providing information about the service..
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="advisory" type="ServiceAdvisory"/>
processingStatus
Type:
ServiceProcessingStatus, complex content
A description of the stage of processing of the service, for example EndofDayProcessingCutoffOccurred, EndOfDayProcessingCompleted. [TBD: could be combined with advisory]
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="processingStatus" type="ServiceProcessingStatus"/>
serviceName
Type:
NormalizedString, simple content
The name of the service to which the message applies
Simple Content
xsd:normalizedString
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="serviceName" type="NormalizedString"/>
status
Type:
ServiceStatus, simple content
The current state of the service (e.g. Available, Unavailable).
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="status" type="ServiceStatus"/>
