complexType "AdjustableDate2"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 4 elements
Used:
at 6 locations

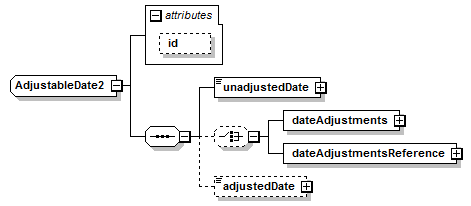

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
adjustedDate (defined in AdjustableDate2 complexType),
dateAdjustments (defined in AdjustableDate2 complexType),
unadjustedDate (defined in AdjustableDate2 complexType)
All Direct / Indirect Based Elements (6):
commencementDate (defined in GenericOptionAttributes.model group),
effectiveDate (defined in GenericProduct complexType),
effectiveDate (in generalTerms),
expirationDate (defined in GenericProduct complexType),
scheduledTerminationDate,
terminationDate (defined in GenericProduct complexType)
Known Usage Locations
Annotation
A type that is different from AdjustableDate in two regards. First, date adjustments can be specified with either a dateAdjustments element or a reference to an existing dateAdjustments element. Second, it does not require the specification of date adjustments.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="AdjustableDate2">
<xsd:sequence>
<xsd:element name="unadjustedDate" type="IdentifiedDate"/>
<xsd:choice minOccurs="0">
<xsd:element name="dateAdjustments" type="BusinessDayAdjustments"/>
</xsd:choice>
<xsd:element minOccurs="0" name="adjustedDate" type="IdentifiedDate"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 4/4)
adjustedDate
Type:
IdentifiedDate, simple content
The date once the adjustment has been performed. (Note that this date may change if the business center holidays change).
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="adjustedDate" type="IdentifiedDate"/>
dateAdjustments
Type:
BusinessDayAdjustments, complex content
The business day convention and financial business centers used for adjusting the date if it would otherwise fall on a day that is not a business dat in the specified business centers.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="dateAdjustments" type="BusinessDayAdjustments"/>
dateAdjustmentsReference
Type:
BusinessDayAdjustmentsReference, empty content
A pointer style reference to date adjustments defined elsewhere in the document.
XML Source (w/o annotations (1); see within schema source)
unadjustedDate
Type:
IdentifiedDate, simple content
A date subject to adjustment.
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="unadjustedDate" type="IdentifiedDate"/>
