complexType "BusinessUnit"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 4 elements
Used:
at 1 location

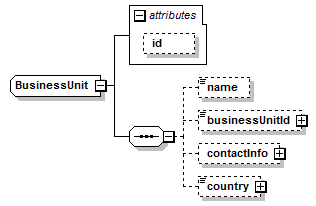

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (4):
All Direct / Indirect Based Elements (1):
businessUnit
Known Usage Locations
Annotation
A type that represents information about a unit within an organization.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="BusinessUnit">
<xsd:sequence>
<xsd:element minOccurs="0" name="name" type="String"/>
<xsd:element minOccurs="0" name="businessUnitId" type="Unit"/>
<xsd:element minOccurs="0" name="contactInfo" type="ContactInformation"/>
<xsd:element minOccurs="0" name="country" type="CountryCode"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 4/4)
businessUnitId
Type:
Unit, simple content
An identifier used to uniquely identify organization unit
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="businessUnitId" type="Unit"/>
contactInfo
Type:
ContactInformation, complex content
Information on how to contact the unit using various means.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="contactInfo" type="ContactInformation"/>
country
Type:
CountryCode, simple content
The ISO 3166 standard code for the country where the individual works.
Simple Content
xsd:token
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="country" type="CountryCode"/>
name
Type:
String, simple content
A name used to describe the organization unit
Simple Content
xsd:string
maxLength:
255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="name" type="String"/>
